My number is 26 and 69.
ALSO by hand , not using Solidworks
My Number Is 26 And 69 Also By Hand Not Using Solidworks 1 (22.17 KiB) Viewed 26 times
My Number Is 26 And 69 Also By Hand Not Using Solidworks 2 (22.17 KiB) Viewed 26 times
My Number Is 26 And 69 Also By Hand Not Using Solidworks 3 (89.82 KiB) Viewed 26 times

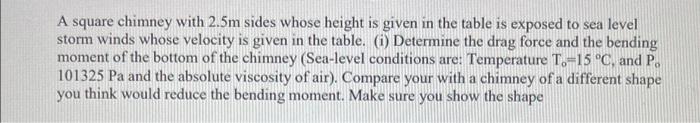

A square chimney with 2.5m sides whose height is given in the table is exposed to sea level storm winds whose velocity is given in the table. (i) Determine the drag force and the bending moment of the bottom of the chimney (Sea-level conditions are: Temperature T.-15 °C, and Po 101325 Pa and the absolute viscosity of air). Compare your with a chimney of a different shape you think would reduce the bending moment. Make sure you show the shape

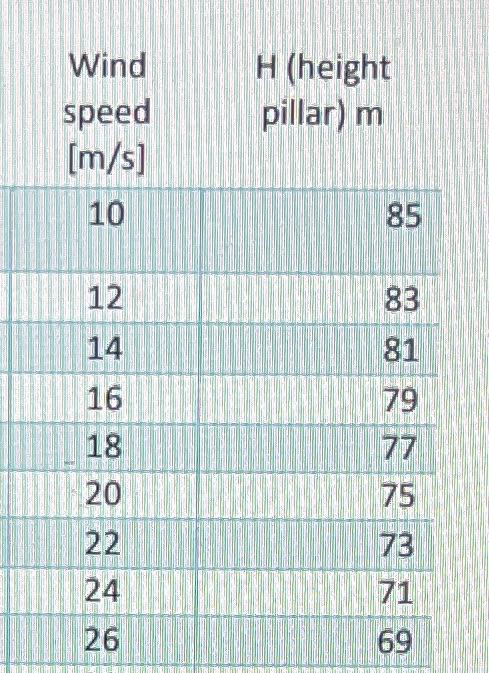

Wind speed [m/s] 10 12 14 16 18 20 22 24 26 H (height pillar) m 85 83 81 79 77 75 73 71 69
