1. (Point 50) A rotating shaft of 25-mm diameter is simply supported by bearing reac tion forces R₁ and R₂. The shaft is

[answerhappygod]

1 Point 50 A Rotating Shaft Of 25 Mm Diameter Is Simply Supported By Bearing Reac Tion Forces R And R The Shaft Is 1 (69.54 KiB) Viewed 67 times

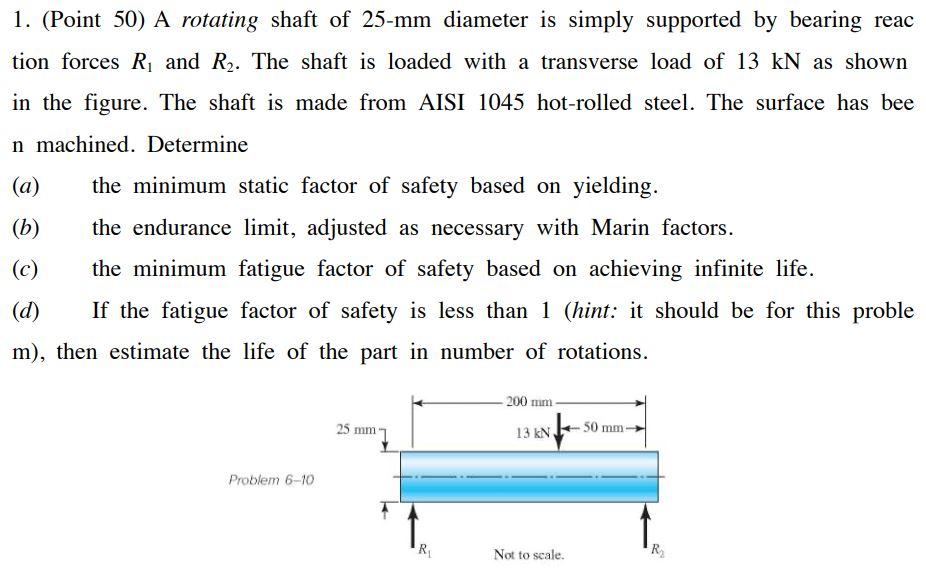

1. (Point 50) A rotating shaft of 25-mm diameter is simply supported by bearing reac tion forces R₁ and R₂. The shaft is loaded with a transverse load of 13 kN as shown in the figure. The shaft is made from AISI 1045 hot-rolled steel. The surface has bee n machined. Determine (a) the minimum static factor of safety based on yielding. (b) the endurance limit, adjusted as necessary with Marin factors. (c) the minimum fatigue factor of safety based on achieving infinite life. (d) If the fatigue factor of safety is less than 1 (hint: it should be for this proble m), then estimate the life of the part in number of rotations. -200 mm- 25 mm- -50 mm- 13 kN, Problem 6-10 Not to scale. R₁ R₂
