1. (10 points) The loop transfer function of a system is L(s) = 1500(s +50) s(s+4) (s+ 600) Sketch the Bode plot represe

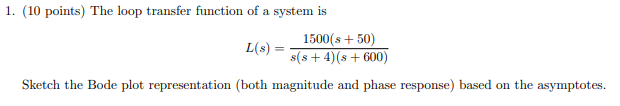

1. (10 points) The loop transfer function of a system is L(s) = 1500(s +50) s(s+4) (s+ 600) Sketch the Bode plot representation (both magnitude and phase response) based on the asymptotes.
