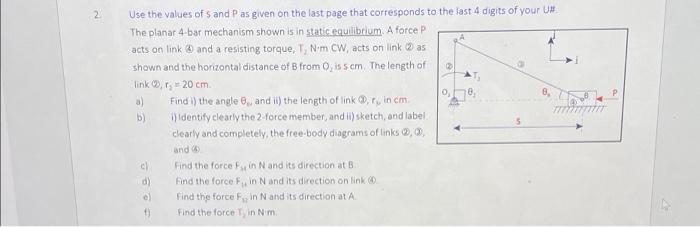

2 Use the values of 5 and P as given on the last page that corresponds to the last 4 digits of your U# The planar 4-bar mechanism shown is in static equilibrium. A force P acts on link and a resisting torque, T, N'm CW, acts on link as shown and the horizontal distance of B from O, is 5 cm. The length of link , r = 20 cm. 6 0, a) Find i) the angle 8, and ii) the length of link , r, in cm. i) Identify clearly the 2-force member, and ii) sketch, and label clearly and completely, the free-body diagrams of links ,, and Find the force F in N and its direction at B. Find the force F₁, in N and its direction on link D Find the force F in N and its direction at A. Find the force Ty in N'm.. b) cl d) e) f)

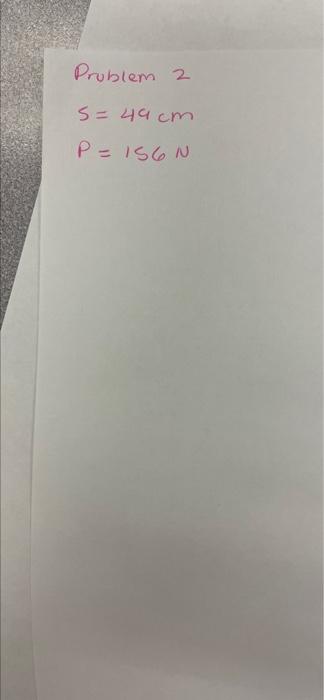

Problem 2 S = 49cm P = 156 N

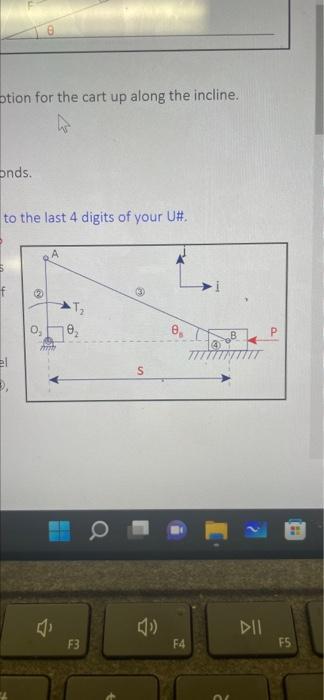

otion for the cart up along the incline. onds. to the last 4 digits of your U#. (2 8 J F3 4 4 D F5
