A steel spur pinion has a module of 6.7 mm, 18 teeth cut on the 20 full-depth system, and a face width of 36 mm. The pin

Post by answerhappygod »

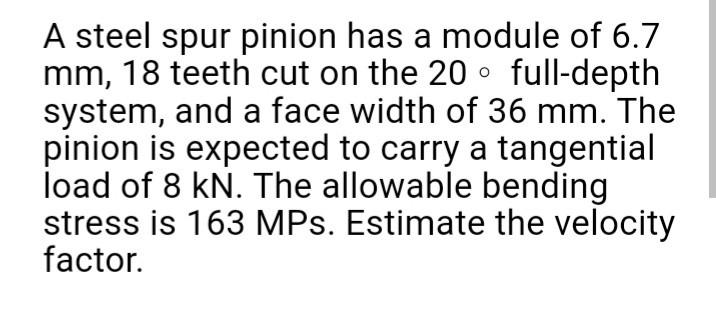

A Steel Spur Pinion Has A Module Of 6 7 Mm 18 Teeth Cut On The 20 Full Depth System And A Face Width Of 36 Mm The Pin 1
A Steel Spur Pinion Has A Module Of 6 7 Mm 18 Teeth Cut On The 20 Full Depth System And A Face Width Of 36 Mm The Pin 1 (38.75 KiB) Viewed 37 times
design of machines
A steel spur pinion has a module of 6.7 mm, 18 teeth cut on the 20 full-depth system, and a face width of 36 mm. The pinion is expected to carry a tangential load of 8 kN. The allowable bending stress is 163 MPs. Estimate the velocity factor.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
