design of machines

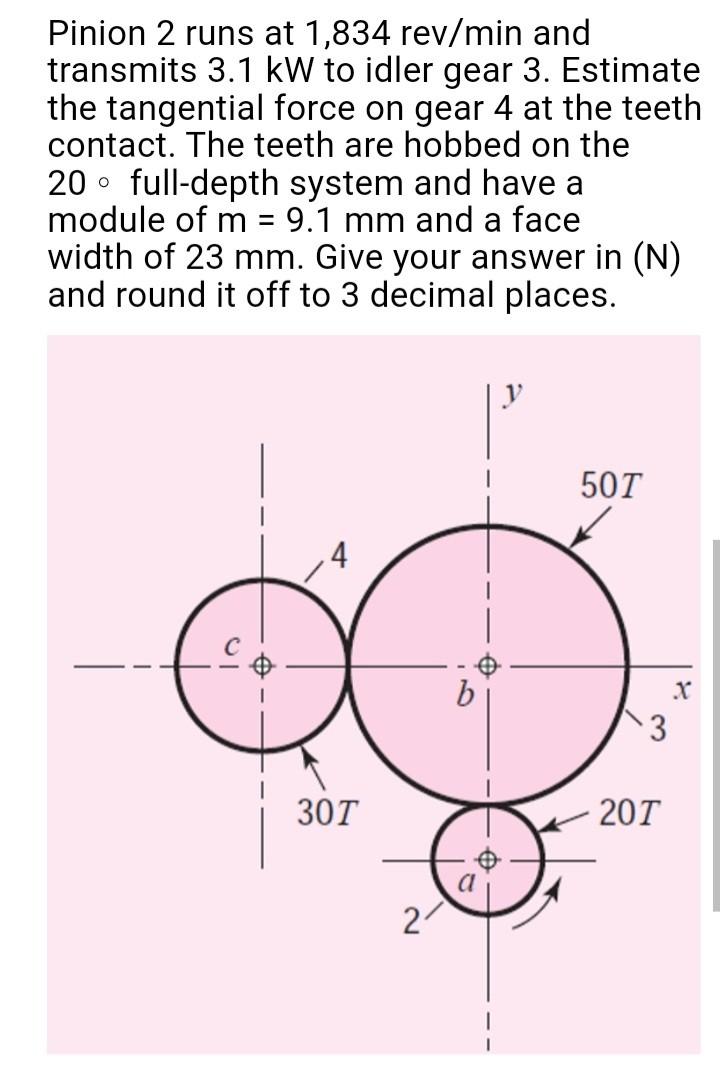

Pinion 2 runs at 1,834 rev/min and transmits 3.1 kW to idler gear 3. Estimate the tangential force on gear 4 at the teeth contact. The teeth are hobbed on the 20 full-depth system and have a module of m = 9.1 mm and a face width of 23 mm. Give your answer in (N) and round it off to 3 decimal places. 50T 30T 3 20T X
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
