Pinion 2 runs at 1750 rev/min and transmits 19.3 kW to idler gear 3. Estimate the bending stress in the contact teeth of

[answerhappygod]

Pinion 2 Runs At 1750 Rev Min And Transmits 19 3 Kw To Idler Gear 3 Estimate The Bending Stress In The Contact Teeth Of 1 (78.34 KiB) Viewed 28 times

design.of machines

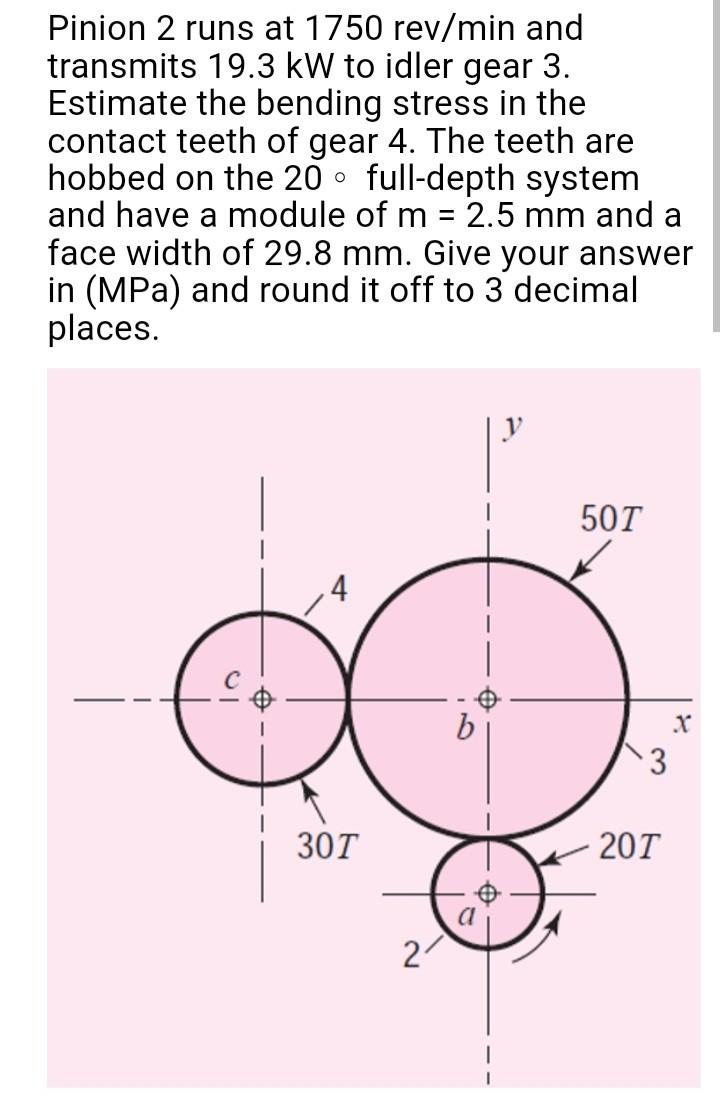

Pinion 2 runs at 1750 rev/min and transmits 19.3 kW to idler gear 3. Estimate the bending stress in the contact teeth of gear 4. The teeth are hobbed on the 20 full-depth system and have a module of m = 2.5 mm and a face width of 29.8 mm. Give your answer in (MPa) and round it off to 3 decimal places. O 50T 30T b 3 20T
