The 410-kg trailer is pulled with a constant speed over the surface of a bumpy road, which may be approximated by a cosi

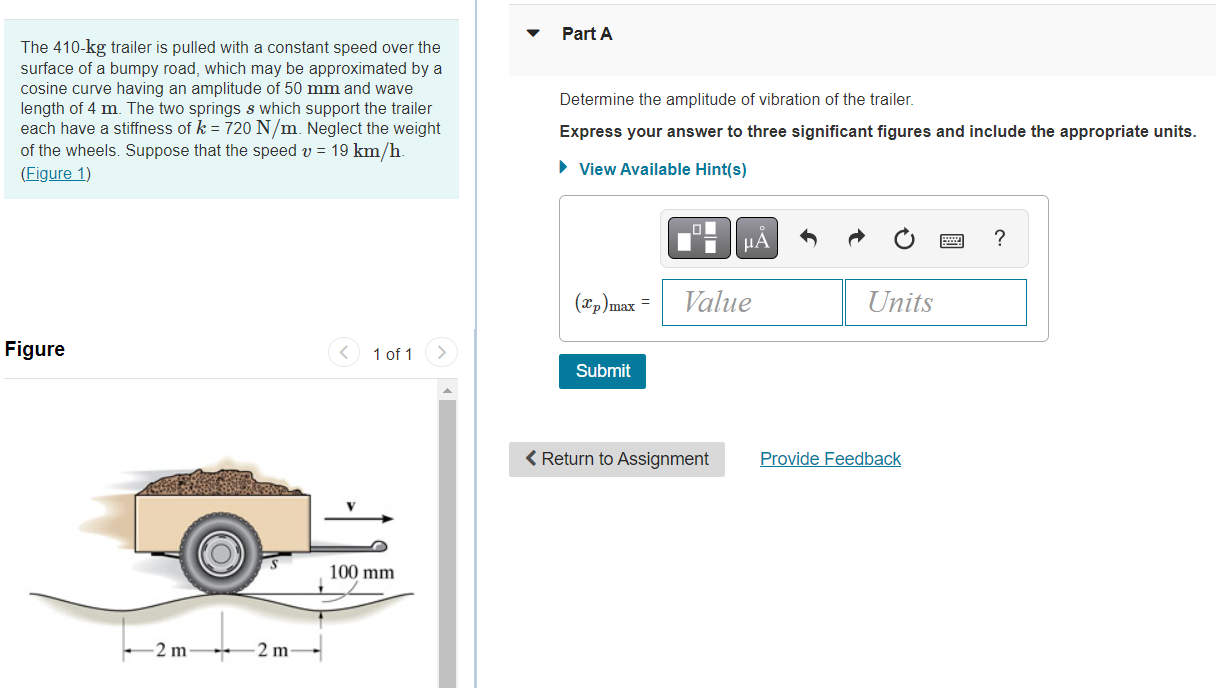

The 410-kg trailer is pulled with a constant speed over the surface of a bumpy road, which may be approximated by a cosine curve having an amplitude of 50 mm and wave length of 4 m. The two springs s which support the trailer each have a stiffness of k = 720 N/m. Neglect the weight of the wheels. Suppose that the speed v = 19 km/h. (Figure 1) Figure 1 of 1 -2 m- + -2 m- 100 mm Part A Determine the amplitude of vibration of the trailer. Express your answer to three significant figures and include the appropriate units. ► View Available Hint(s) μA ? (xp)max = Value Units Submit < Return to Assignment Provide Feedback
