= = = = 1. A plate in bending of thickness t 50 mm was found to have the moment resultants Mx : 15 N, My = -5 N, and Mxy
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
= = = = 1. A plate in bending of thickness t 50 mm was found to have the moment resultants Mx : 15 N, My = -5 N, and Mxy

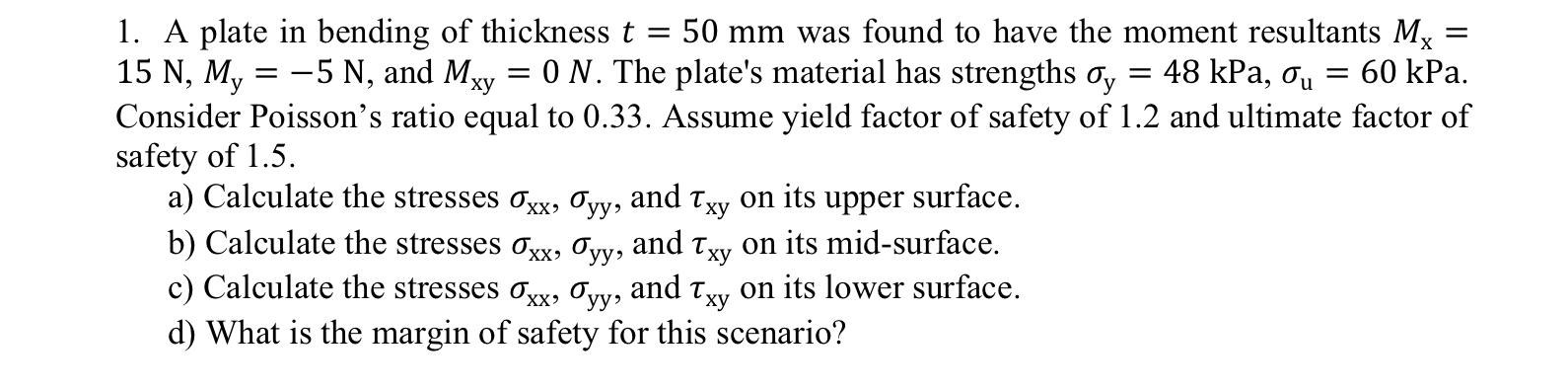

= = = = 1. A plate in bending of thickness t 50 mm was found to have the moment resultants Mx : 15 N, My = -5 N, and Mxy 0 N. The plate's material has strengths oy = 48 kPa, Ju 60 kPa. Consider Poisson's ratio equal to 0.33. Assume yield factor of safety of 1.2 and ultimate factor of safety of 1.5. on its upper surface. a) Calculate the stresses xx,yy, and Txy b) Calculate the stresses Oxx,yy, and Txy on its mid-surface. c) Calculate the stresses Oxx, yy, and Txy on its lower surface. d) What is the margin of safety for this scenario?
