3. Oil is drained from a large reservoir using two circular pipes shown below. The average velocity of oil at the outlet
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
3. Oil is drained from a large reservoir using two circular pipes shown below. The average velocity of oil at the outlet

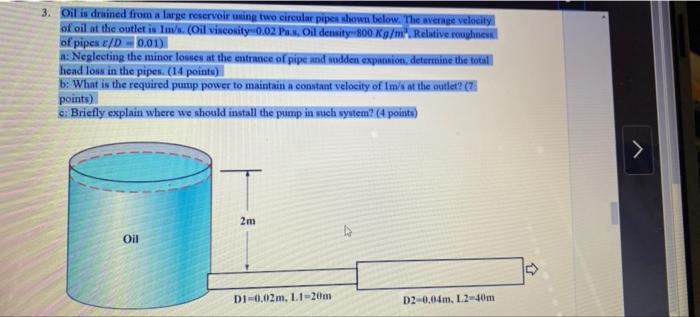

3. Oil is drained from a large reservoir using two circular pipes shown below. The average velocity of oil at the outlet is Im/s. (Oil viscosity-0.02 Pas, Oil density-800 Kg/m³. Relative roughness of pipes c/D-0.01) a: Neglecting the minor losses at the entrance of pipe and sudden expansion, determine the total head loss in the pipes. (14 points) b: What is the required pump power to maintain a constant velocity of Im's at the outlet? (7 points) c: Briefly explain where we should install the pump in such system? (4 points) 2m Oil 4 D1-0.02m. 1.1-20m D2-0,04m, L2-40m
