For the design shown, it is proposed to use hydrodynamic film
lubrication bearings at points O and A. All surfaces are machined
except the journals, which are ground and polished. Material is
1020 cold drawn steel. The radii of the shoulders of the bearings
0.030 in., the others 1/16 in. Square profile sled keyway is 3 1/2
in. long. It is design satisfactory?
For The Design Shown It Is Proposed To Use Hydrodynamic Film Lubrication Bearings At Points O And A All Surfaces Are M 1 (128.33 KiB) Viewed 30 times

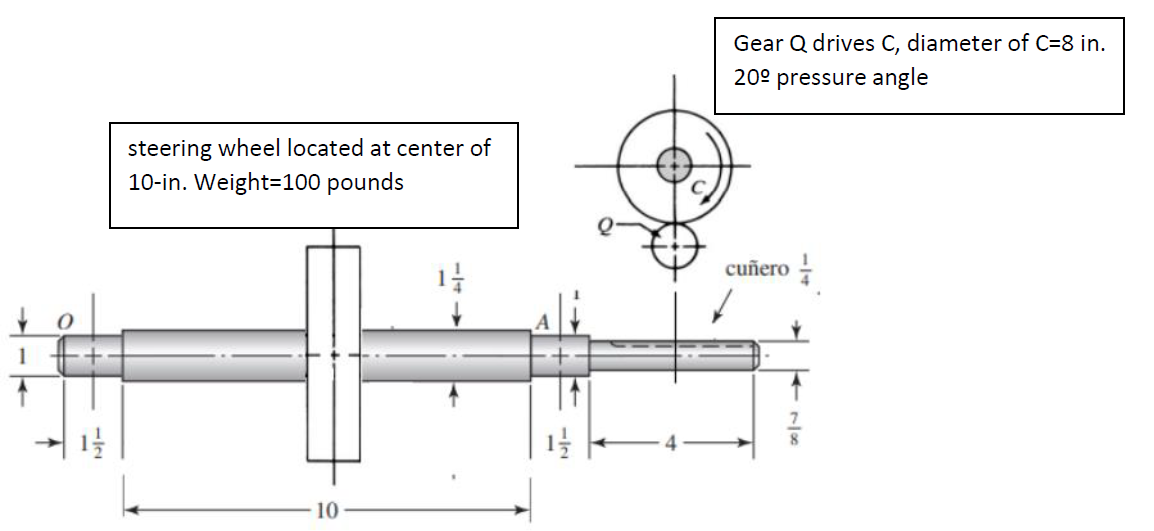

1 steering wheel located at center of 10-in. Weight=100 pounds 10 Ar 712 Gear Q drives C, diameter of C=8 in. 20º pressure angle cuñero
