(a) Find the bending and transverse shear stress at points A and B in the figure. (b) Find the maximum normal stress and

Post by answerhappygod »

A Find The Bending And Transverse Shear Stress At Points A And B In The Figure B Find The Maximum Normal Stress And 1
A Find The Bending And Transverse Shear Stress At Points A And B In The Figure B Find The Maximum Normal Stress And 1 (98.13 KiB) Viewed 28 times

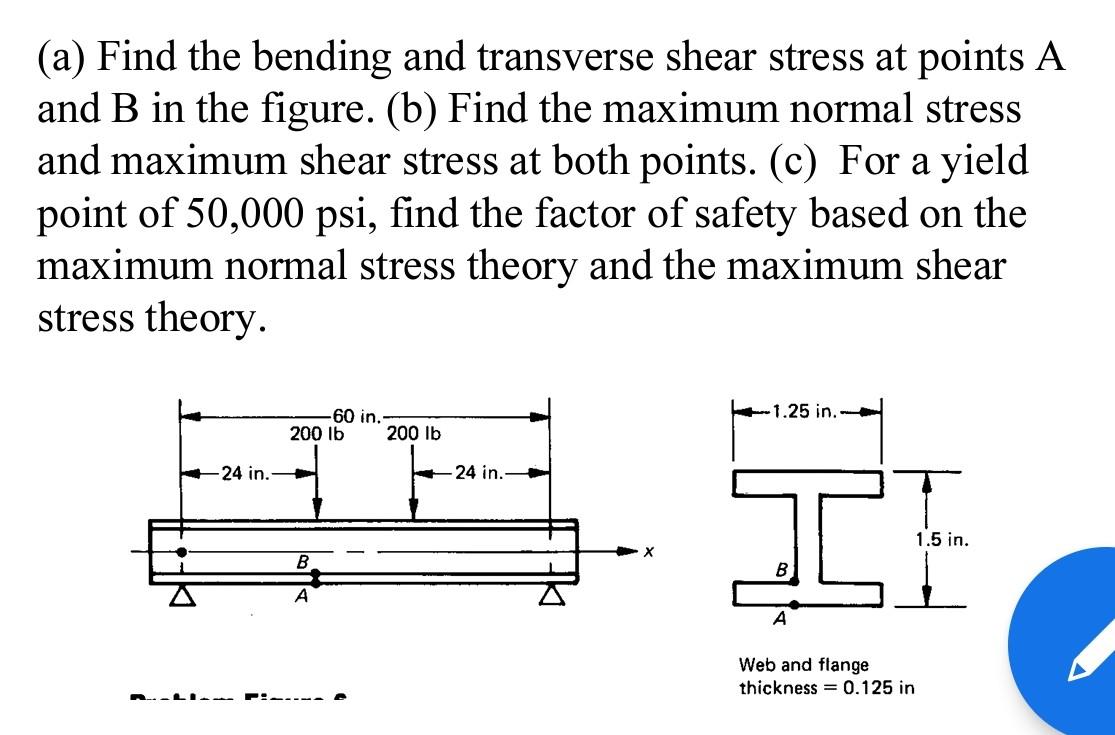

(a) Find the bending and transverse shear stress at points A and B in the figure. (b) Find the maximum normal stress and maximum shear stress at both points. (c) For a yield point of 50,000 psi, find the factor of safety based on the maximum normal stress theory and the maximum shear stress theory. -1.25 in.. -60 in. 200 lb 24 in. 24 in.- I A Web and flange thickness=0.125 in 200 lb B 1.5 in.
