Please send the answers within 1 hour. Thanks.
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Please send the answers within 1 hour. Thanks.
Please send the answers within 1 hour. Thanks.

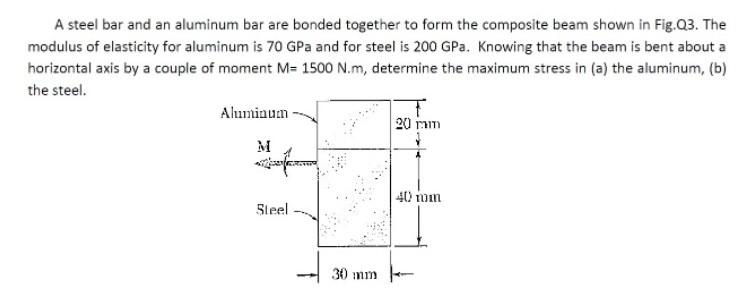

A steel bar and an aluminum bar are bonded together to form the composite beam shown in Fig.Q3. The modulus of elasticity for aluminum is 70 GPa and for steel is 200 GPa. Knowing that the beam is bent about a horizontal axis by a couple of moment M= 1500 N.m, determine the maximum stress in (a) the aluminum, (b) the steel. Aluminum 20 rum M 40 mm Steel 30 mm
A steel bar and an aluminum bar are bonded together to form the composite beam shown in Fig.Q3. The modulus of elasticity for aluminum is 70 GPa and for steel is 200 GPa. Knowing that the beam is bent about a horizontal axis by a couple of moment M= 1500 N.m, determine the maximum stress in (a) the aluminum, (b) the steel. Aluminum 20 rum M 40 mm Steel 30 mm
