Problem 1. [20pts] A block diagram of a control system is shown in Fig.2. (a) [10pts] Find the range of the feedback par

Post by answerhappygod »

Problem 1 20pts A Block Diagram Of A Control System Is Shown In Fig 2 A 10pts Find The Range Of The Feedback Par 1
Problem 1 20pts A Block Diagram Of A Control System Is Shown In Fig 2 A 10pts Find The Range Of The Feedback Par 1 (30.74 KiB) Viewed 22 times

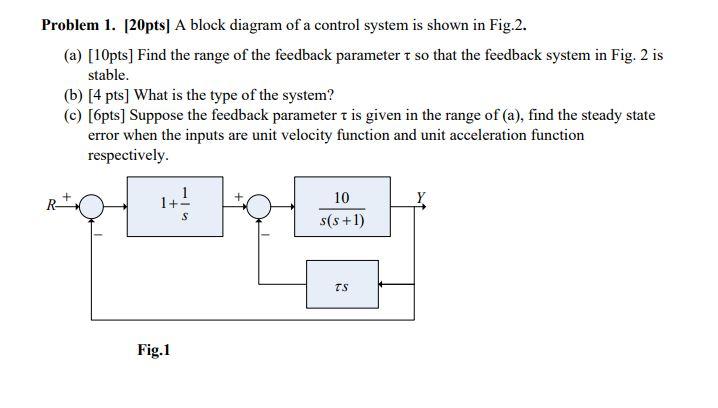

Problem 1. [20pts] A block diagram of a control system is shown in Fig.2. (a) [10pts] Find the range of the feedback parameter t so that the feedback system in Fig. 2 is stable. (b) [4 pts] What is the type of the system? (c) [6pts] Suppose the feedback parameter t is given in the range of (a), find the steady state error when the inputs are unit velocity function and unit acceleration function respectively. 1+ 10 s(s+1) TS Fig.1 S
