Knowing that the radius of each pulley is 200 mm and neglecting friction, determine the internal forces (shear force and

Post by answerhappygod »

Knowing That The Radius Of Each Pulley Is 200 Mm And Neglecting Friction Determine The Internal Forces Shear Force And 1
Knowing That The Radius Of Each Pulley Is 200 Mm And Neglecting Friction Determine The Internal Forces Shear Force And 1 (304.95 KiB) Viewed 23 times

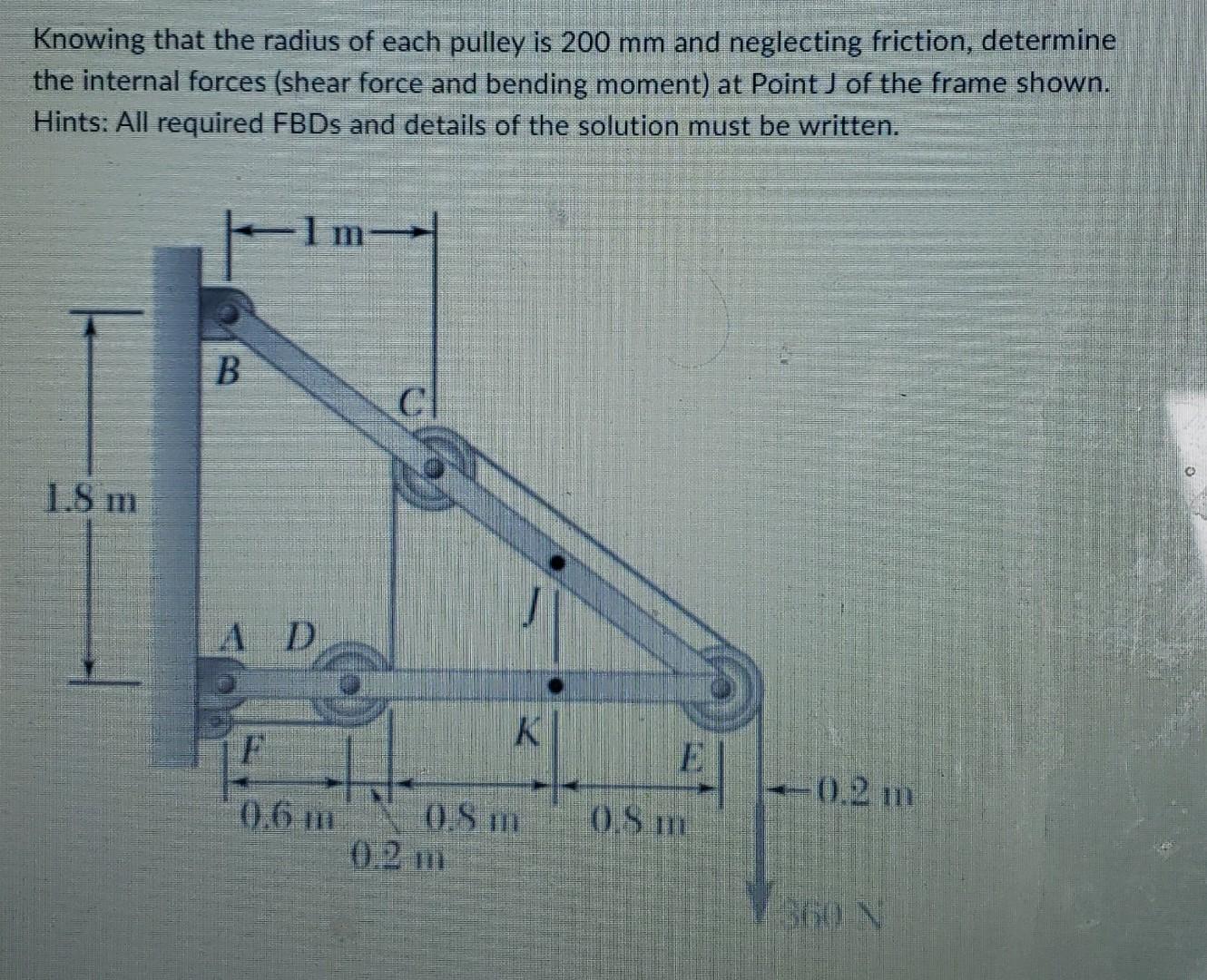

Knowing that the radius of each pulley is 200 mm and neglecting friction, determine the internal forces (shear force and bending moment) at Point J of the frame shown. Hints: All required FBDs and details of the solution must be written. 1m→ 1.8 m -0.2 m 360 N B AD F 0.6 m 0.8 m 0.2 m K 0.8.m
