Thermal Conductivity Specific Heat Temperature Density -10 796 10.008. 0.135 1.8 10 795 0.006 0.133 1.9 30 794 0.004 0.1

[answerhappygod]

Thermal Conductivity Specific Heat Temperature Density 10 796 10 008 0 135 1 8 10 795 0 006 0 133 1 9 30 794 0 004 0 1 1 (81.87 KiB) Viewed 16 times

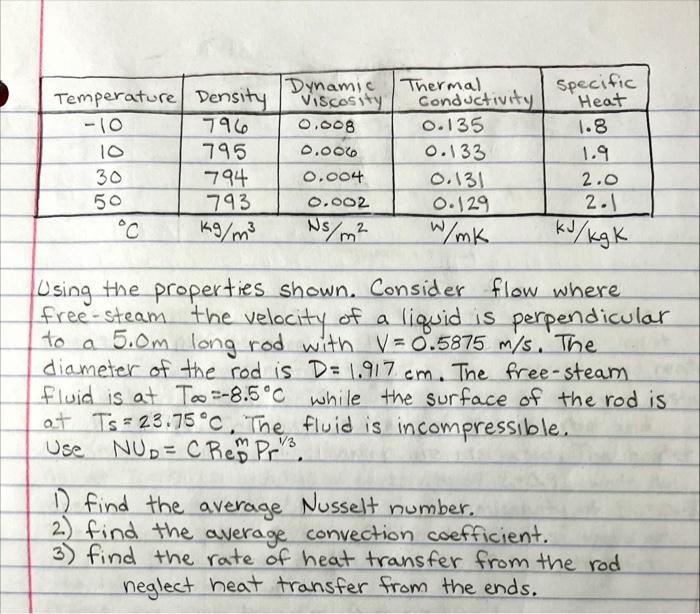

Thermal Conductivity Specific Heat Temperature Density -10 796 10.008. 0.135 1.8 10 795 0.006 0.133 1.9 30 794 0.004 0.131 2.0 50 793 0.002 0.129 2.1 °C kg/m³ Ns/m² w/mk. kJ/kg k Using the properties shown. Consider flow where free-steam the velocity of a liquid is perpendicular a 5.0m long rod with V=0.5875 m/s. The diameter of the rod is D= 1.917 cm. The free-steam Fluid is at T∞ = -8.5°C to at Ts= 23.75°C. The while the surface of the rod is. fluid is incompressible. Use NUD C Re Pr 1) find the average Nusselt number. 2) find the average convection coefficient. 3) find the rate of heat transfer from the rod neglect heat transfer from the ends. Dynamic Viscosity
