The two cylindrical rod segments are fixed to the rigid walls such that there is a gap of 0.2 mm- between them when temp

Post by answerhappygod »

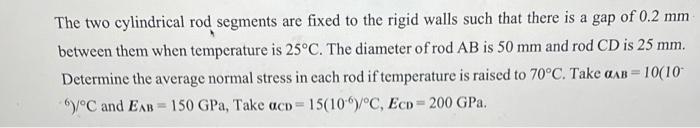

The Two Cylindrical Rod Segments Are Fixed To The Rigid Walls Such That There Is A Gap Of 0 2 Mm Between Them When Temp 1
The Two Cylindrical Rod Segments Are Fixed To The Rigid Walls Such That There Is A Gap Of 0 2 Mm Between Them When Temp 1 (17.31 KiB) Viewed 32 times
The two cylindrical rod segments are fixed to the rigid walls such that there is a gap of 0.2 mm- between them when temperature is 25°C. The diameter of rod AB is 50 mm and rod CD is 25 mm. Determine the average normal stress in each rod if temperature is raised to 70°C. Take AB=10(10 6)/C and EAB 150 GPa, Take acp=15(106)/°C, EcD = 200 GPa. =
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
