Problem 2 E A B C 0.2 mm D 25 mm a -450 mm- 300 mm- The two cylindrical rod segments are fixed to the rigid walls such t

[answerhappygod]

Problem 2 E A B C 0 2 Mm D 25 Mm A 450 Mm 300 Mm The Two Cylindrical Rod Segments Are Fixed To The Rigid Walls Such T 1 (25.13 KiB) Viewed 25 times

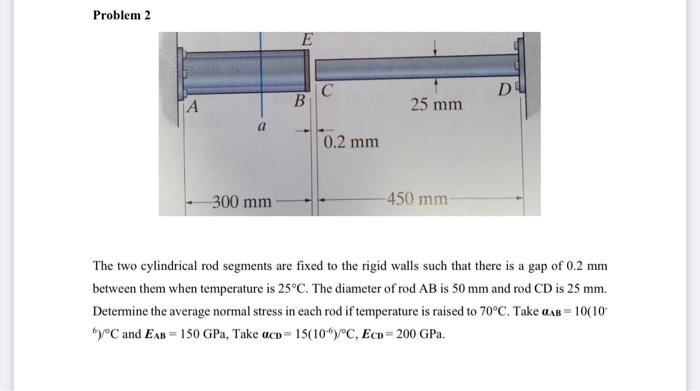

Problem 2 E A B C 0.2 mm D 25 mm a -450 mm- 300 mm- The two cylindrical rod segments are fixed to the rigid walls such that there is a gap of 0.2 mm between them when temperature is 25°C. The diameter of rod AB is 50 mm and rod CD is 25 mm. Determine the average normal stress in each rod if temperature is raised to 70°C. Take AB=10(10- *)/°C and EAB = 150 GPa, Take acp=15(10)/°C, Ecp=200 GPa.
