Question #1(25 Marks) For the state of plane stress, stress components are shown on the element in Figure Question 1: a)

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question #1(25 Marks) For the state of plane stress, stress components are shown on the element in Figure Question 1: a)

Post by answerhappygod »

Question 1 25 Marks For The State Of Plane Stress Stress Components Are Shown On The Element In Figure Question 1 A 1
Question 1 25 Marks For The State Of Plane Stress Stress Components Are Shown On The Element In Figure Question 1 A 1 (27.63 KiB) Viewed 26 times

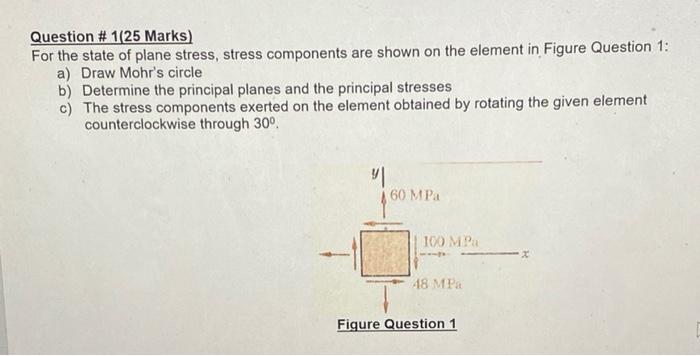

Question #1(25 Marks) For the state of plane stress, stress components are shown on the element in Figure Question 1: a) Draw Mohr's circle b) Determine the principal planes and the principal stresses c) The stress components exerted on the element obtained by rotating the given element counterclockwise through 30⁰. 비 60 MPa 100 MPa 48 MPa Figure Question 1
