The cantilever beam consists of a W530 x 74 structural steel wide-flange shape [E = 200 GPa; l = 410 × 106 mm4]. Use dis

Post by answerhappygod »

The Cantilever Beam Consists Of A W530 X 74 Structural Steel Wide Flange Shape E 200 Gpa L 410 106 Mm4 Use Dis 1
The Cantilever Beam Consists Of A W530 X 74 Structural Steel Wide Flange Shape E 200 Gpa L 410 106 Mm4 Use Dis 1 (25.48 KiB) Viewed 32 times

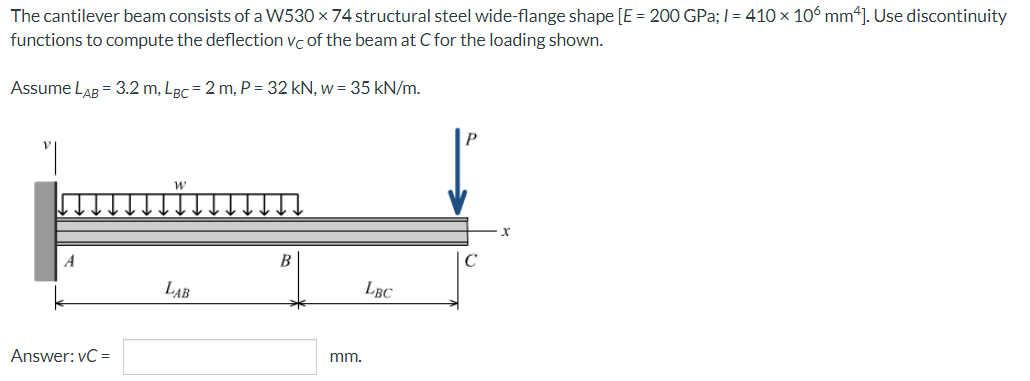

The cantilever beam consists of a W530 x 74 structural steel wide-flange shape [E = 200 GPa; l = 410 × 106 mm4]. Use discontinuity functions to compute the deflection vc of the beam at C for the loading shown. Assume LAB = 3.2 m, LBc = 2 m, P = 32 kN, w = 35 kN/m. "1 W B LAB LBC A Answer: vC = mm.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
