Problem 2 E A C 0.2 mm B 25 mm 300 mm -450 mm- The two cylindrical rod segments are fixed to the rigid walls such that t

[answerhappygod]

Problem 2 E A C 0 2 Mm B 25 Mm 300 Mm 450 Mm The Two Cylindrical Rod Segments Are Fixed To The Rigid Walls Such That T 1 (157.42 KiB) Viewed 38 times

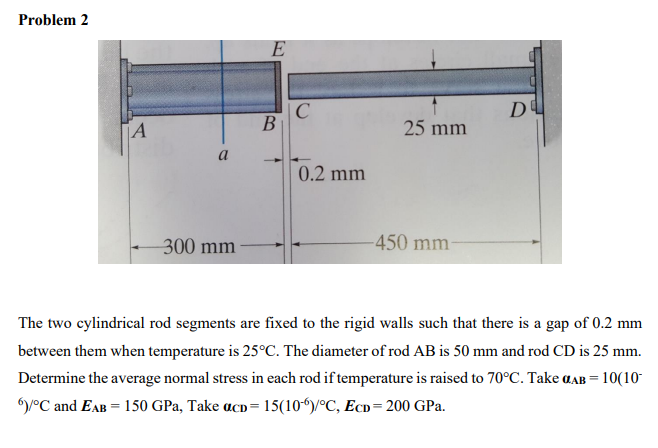

Problem 2 E A C 0.2 mm B 25 mm 300 mm -450 mm- The two cylindrical rod segments are fixed to the rigid walls such that there is a gap of 0.2 mm between them when temperature is 25°C. The diameter of rod AB is 50 mm and rod CD is 25 mm. Determine the average normal stress in each rod if temperature is raised to 70°C. Take OAB = 10(10 6)/°C and EAB = 150 GPa, Take acp = 15(106)/°C, EcD = 200 GPa. D
