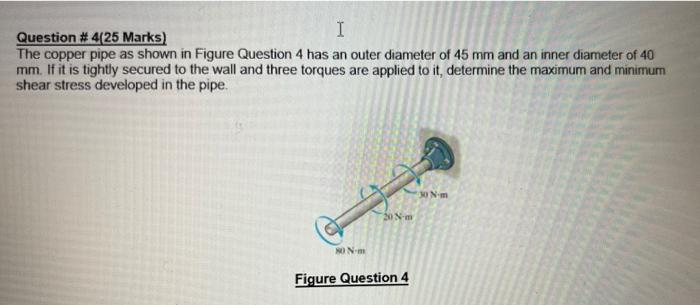

I Question # 4(25 Marks) The copper pipe as shown in Figure Question 4 has an outer diameter of 45 mm and an inner diameter of 40 mm. If it is tightly secured to the wall and three torques are applied to it, determine the maximum and minimum shear stress developed in the pipe. 30 N-m 20 Nm 80 N-m Figure Question 4
