Question 1 25 Marks For The State Of Plane Stress Stress Components Are Shown On The Element In Figure Question 1 A 1 (31.85 KiB) Viewed 39 times
Values: 60 MPa, 100 MPa, 48MPa

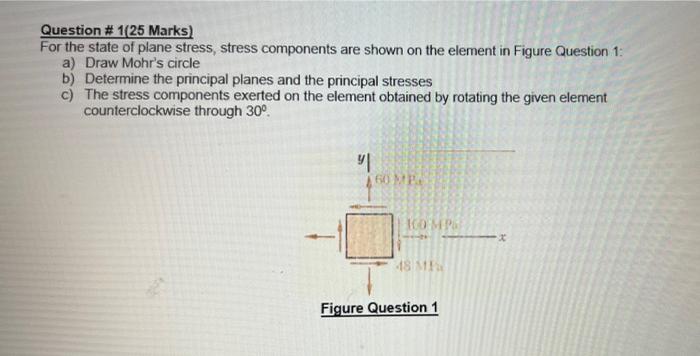

Question # 1(25 Marks) For the state of plane stress, stress components are shown on the element in Figure Question 1: a) Draw Mohr's circle b) Determine the principal planes and the principal stresses c) The stress components exerted on the element obtained by rotating the given element counterclockwise through 30⁰. 비 60 MP ICO MP 48 ME Figure Question 1
