For the beam and loading shown, use the double-integration method to determine (a) the equation of the elastic curve for

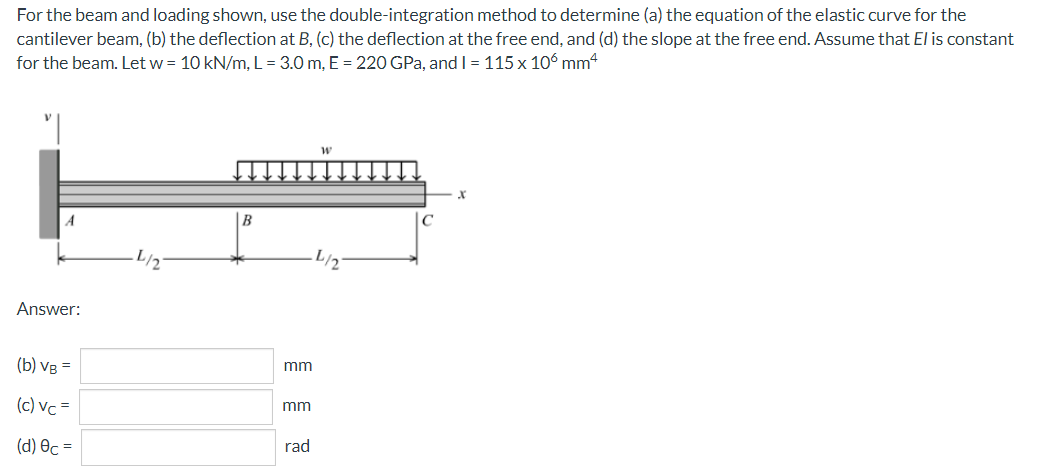

For the beam and loading shown, use the double-integration method to determine (a) the equation of the elastic curve for the cantilever beam, (b) the deflection at B, (c) the deflection at the free end, and (d) the slope at the free end. Assume that El is constant for the beam. Let w = 10 kN/m, L = 3.0 m, E = 220 GPa, and I = 115 x 106 mm² X A B Answer: (b) VB = (c) Vc = (d) 0c = L/2 mm mm rad L/2 с
