You have been hired by the City of Far Far Away Utilities Department for a summer internship program. The city's water t

[answerhappygod]

You Have Been Hired By The City Of Far Far Away Utilities Department For A Summer Internship Program The City S Water T 1 (59.8 KiB) Viewed 41 times

You Have Been Hired By The City Of Far Far Away Utilities Department For A Summer Internship Program The City S Water T 2 (50.03 KiB) Viewed 41 times

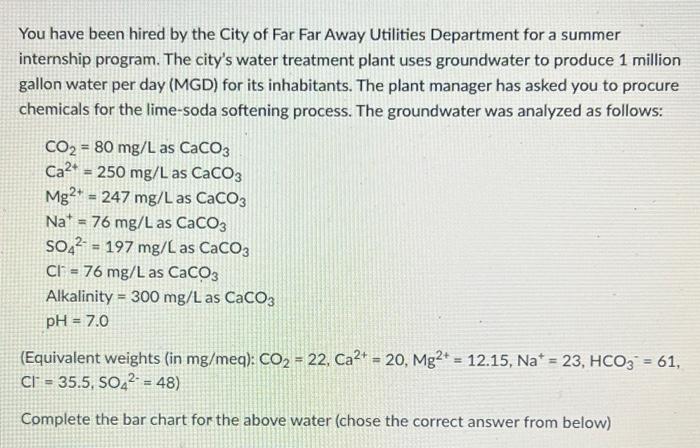

You have been hired by the City of Far Far Away Utilities Department for a summer internship program. The city's water treatment plant uses groundwater to produce 1 million gallon water per day (MGD) for its inhabitants. The plant manager has asked you to procure chemicals for the lime-soda softening process. The groundwater was analyzed as follows: CO₂ = 80 mg/L as CaCO3 Ca2+ = 250 mg/L as CaCO3 Mg2+ = 247 mg/L as CaCO3 Na 76 mg/L as CaCO3 SO4 197 mg/L as CaCO3 = CI 76 mg/L as CaCO3 = Alkalinity 300 mg/L as CaCO3 pH = 7.0 (Equivalent weights (in mg/meq): CO₂ = 22, Ca²+ = 20, Mg2+ = 12.15, Na* = 23, HCO3 = 61, CI= 35.5, SO4² = 48) Complete the bar chart for the above water (chose the correct answer from below)

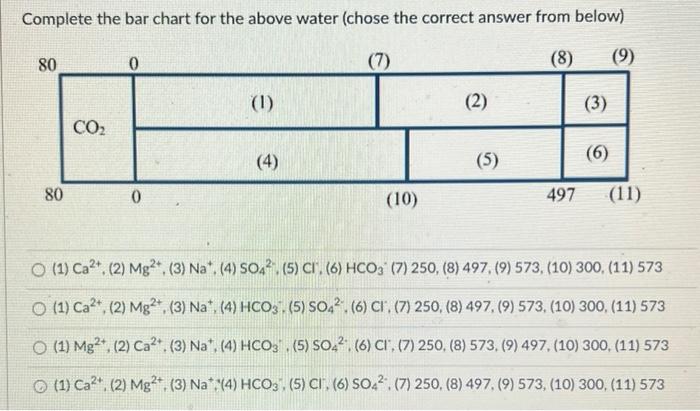

Complete the bar chart for the above water (chose the correct answer from below) 80 0 (7) (8) (9) (2) (4) (5) 80 0 (10) 497 (11) O (1) Ca2+, (2) Mg2+, (3) Nat, (4) SO42. (5) CI. (6) HCO3 (7) 250, (8) 497, (9) 573, (10) 300, (11) 573 (1) Ca²+, (2) Mg2+, (3) Na*, (4) HCO3. (5) SO42. (6) CI. (7) 250, (8) 497, (9) 573, (10) 300, (11) 573 O (1) Mg2+, (2) Ca2+. (3) Na*, (4) HCO3. (5) SO4². (6) CI. (7) 250, (8) 573, (9) 497, (10) 300, (11) 573 (1) Ca²+. (2) Mg2+, (3) Na*(4) HCO3. (5) CI, (6) SO42. (7) 250, (8) 497. (9) 573, (10) 300, (11) 573 CO₂ (3) (6)
