Question 3 3.1. Derive the transfer function of the system below, by ignoring gravitation. f(s) (a) First use block diag

[answerhappygod]

Question 3 3 1 Derive The Transfer Function Of The System Below By Ignoring Gravitation F S A First Use Block Diag 1 (23.54 KiB) Viewed 41 times

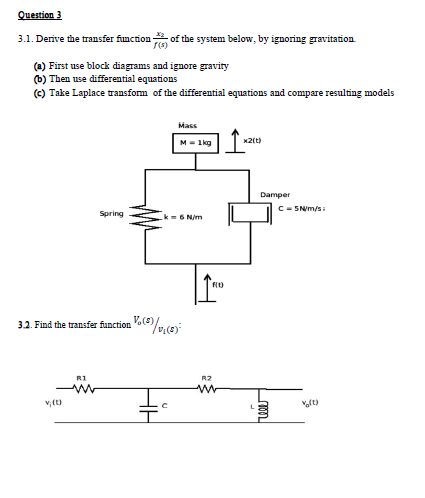

Question 3 3.1. Derive the transfer function of the system below, by ignoring gravitation. f(s) (a) First use block diagrams and ignore gravity (b) Then use differential equations (c) Take Laplace transform of the differential equations and compare resulting models Mass M = 1kg x2(t) Spring 3.2. Find the transfer function () /v₁ (8) R1 v; (t) k-6 N/m f(t) R2 w Damper പ reee C=5N/m/s X(t)
