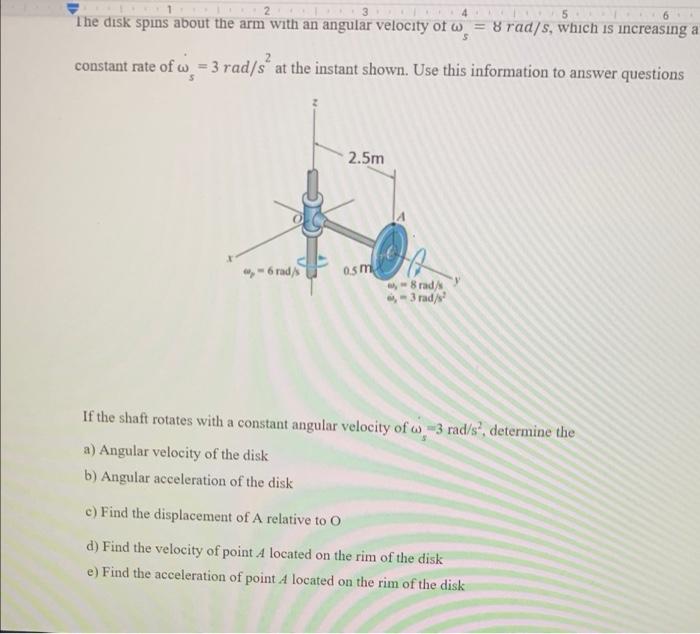

1 1 2 3 4. 5. The disk spins about the arm with an angular velocity of w = 8 rad/s, which is increasing at constant rate of = 3 rad/s² at the instant shown. Use this information to answer questions 2.5m -6 rad/s 0.5 m 8 rad/s -3 rad/s² If the shaft rotates with a constant angular velocity of 3 rad/s", determine the a) Angular velocity of the disk b) Angular acceleration of the disk c) Find the displacement of A relative to O d) Find the velocity of point A located on the rim of the disk e) Find the acceleration of point A located on the rim of the disk
