A reciprocating crank-and-connecting rod mechanism is shown in Figure Q1. The crank OA, 150 mm long, rotates at 15 rev/s

[answerhappygod]

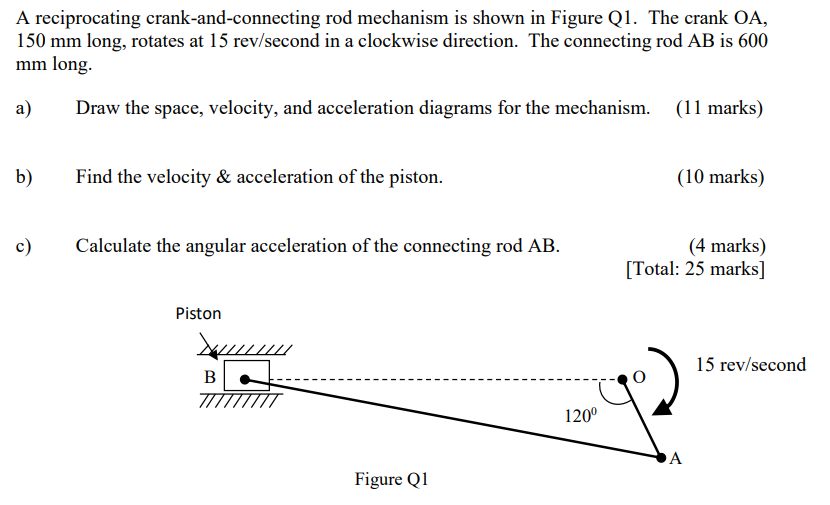

A Reciprocating Crank And Connecting Rod Mechanism Is Shown In Figure Q1 The Crank Oa 150 Mm Long Rotates At 15 Rev S 1 (72.77 KiB) Viewed 38 times

A reciprocating crank-and-connecting rod mechanism is shown in Figure Q1. The crank OA, 150 mm long, rotates at 15 rev/second in a clockwise direction. The connecting rod AB is 600 mm long. a) Draw the space, velocity, and acceleration diagrams for the mechanism. (11 marks) b) Find the velocity & acceleration of the piston. (10 marks) c) Calculate the angular acceleration of the connecting rod AB. (4 marks) [Total: 25 marks] Piston wwww B 120⁰ Figure Q1 A 15 rev/second
