MY NOTES PREVIOUS ANSWERS GGMECHMAT9 10.3.005. 5. [4.16/16.66 Points] DETAILS A cantilever beam AB of a length L has a f

[answerhappygod]

My Notes Previous Answers Ggmechmat9 10 3 005 5 4 16 16 66 Points Details A Cantilever Beam Ab Of A Length L Has A F 1 (70.78 KiB) Viewed 40 times

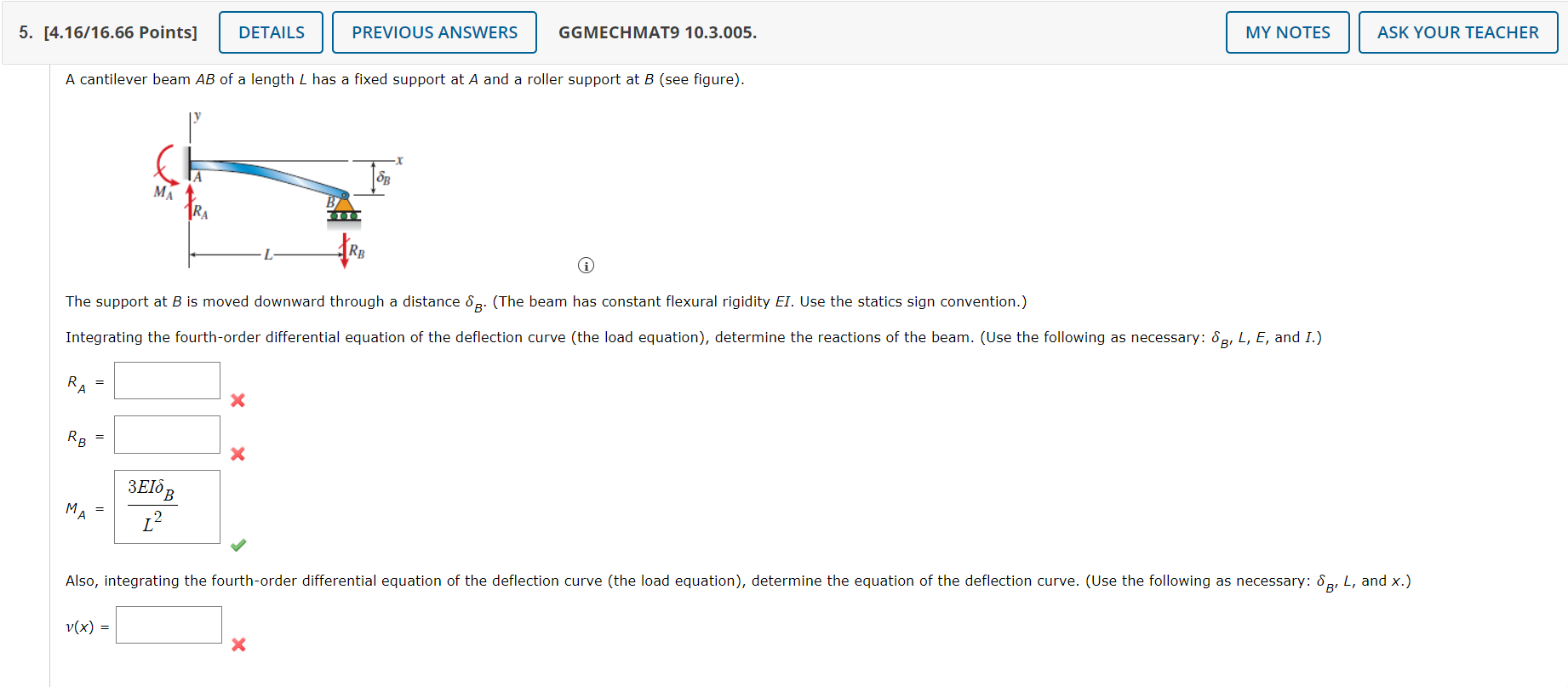

MY NOTES PREVIOUS ANSWERS GGMECHMAT9 10.3.005. 5. [4.16/16.66 Points] DETAILS A cantilever beam AB of a length L has a fixed support at A and a roller support at B (see figure). SB MA RB The support at B is moved downward through a distance &. (The beam has constant flexural rigidity EI. Use the statics sign convention.) Integrating the fourth-order differential equation of the deflection curve (the load equation), determine the reactions of the beam. (Use the following as necessary: &, L, E, and I.) = RA 3E18 B MA L² B' Also, integrating the fourth-order differential equation of the deflection curve (the load equation), determine the equation of the deflection curve. (Use the following as necessary: 8, L, and x.) v(x) = RB = = ASK YOUR TEACHER
