Question 4 (20 Marks Total) a) Calculate an expression in terms of Young's Modulus, E, and Second Moment of Area, I, for

Post by answerhappygod »

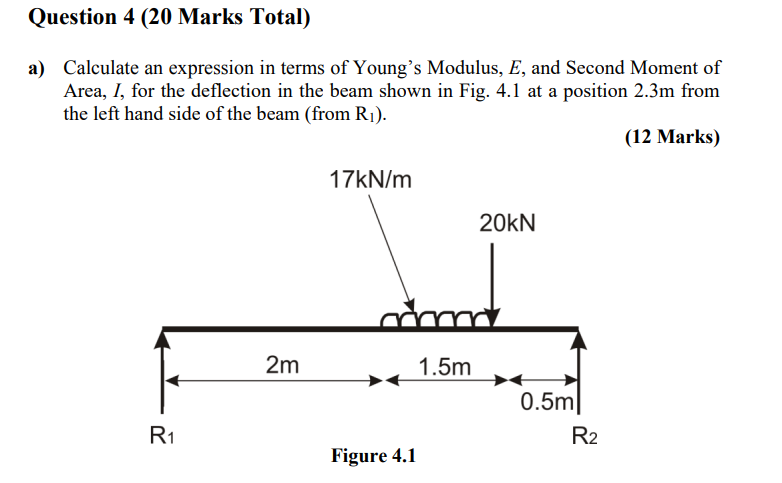

Question 4 20 Marks Total A Calculate An Expression In Terms Of Young S Modulus E And Second Moment Of Area I For 1
Question 4 20 Marks Total A Calculate An Expression In Terms Of Young S Modulus E And Second Moment Of Area I For 1 (58.64 KiB) Viewed 37 times
Question 4 (20 Marks Total) a) Calculate an expression in terms of Young's Modulus, E, and Second Moment of Area, I, for the deflection in the beam shown in Fig. 4.1 at a position 2.3m from the left hand side of the beam (from R₁). (12 Marks) 17kN/m 20kN R₁ 2m brood 1.5m Figure 4.1 0.5m R₂
