Question 5 Derive the transfer function of the system below, by ignoring gravitation. f(s) (a) First use block diagrams

Post by answerhappygod »

Question 5 Derive The Transfer Function Of The System Below By Ignoring Gravitation F S A First Use Block Diagrams 1
Question 5 Derive The Transfer Function Of The System Below By Ignoring Gravitation F S A First Use Block Diagrams 1 (49.36 KiB) Viewed 35 times

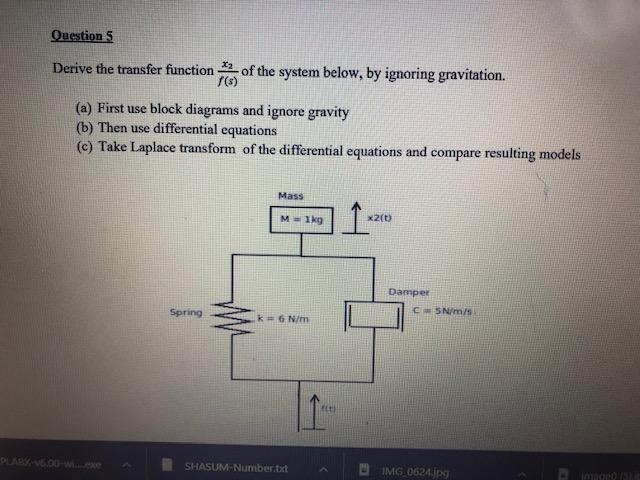

Question 5 Derive the transfer function of the system below, by ignoring gravitation. f(s) (a) First use block diagrams and ignore gravity (b) Then use differential equations (c) Take Laplace transform of the differential equations and compare resulting models Mass M = 1kg x2(t) Spring k 6 N/m SHASUM-Number.txt f(t) Damper CSN/m/s IMG_0624.jpg image0 (St.R
