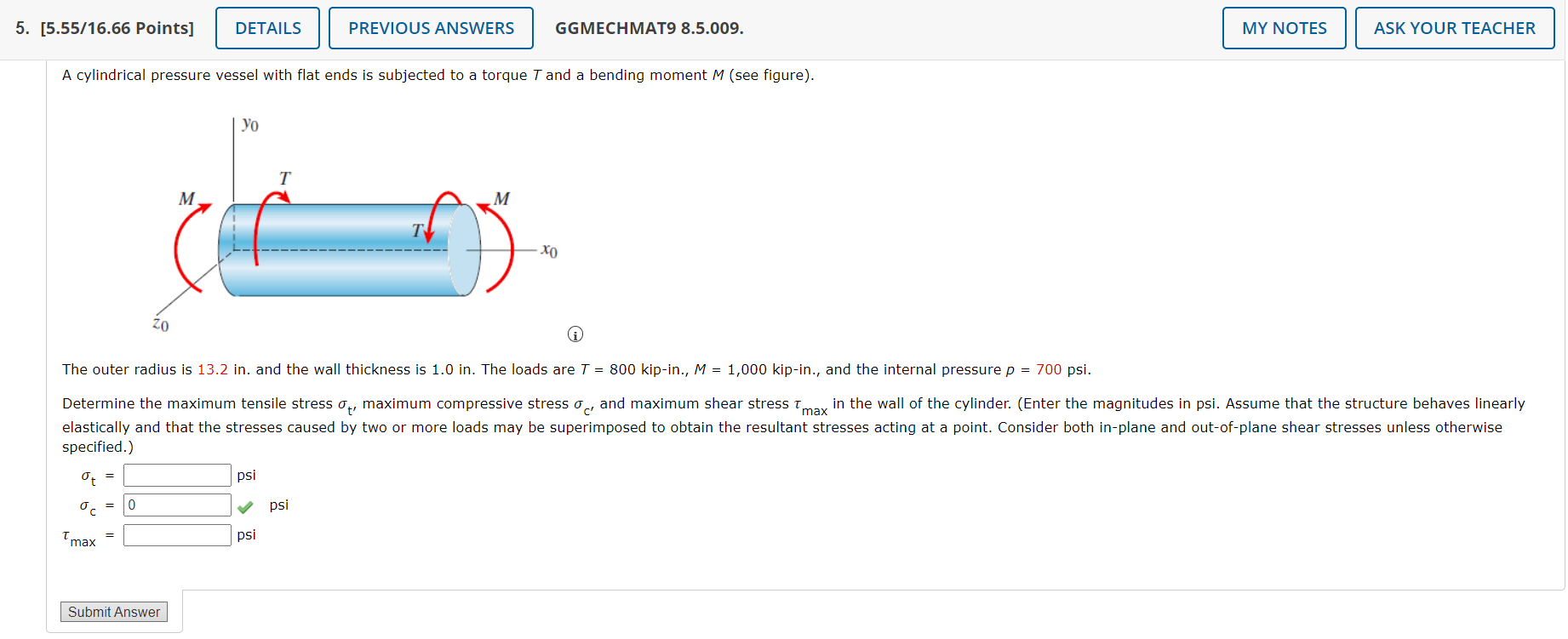

MY NOTES 5. [5.55/16.66 Points] DETAILS GGMECHMAT9 8.5.009. ASK YOUR TEACHER PREVIOUS ANSWERS A cylindrical pressure vessel with flat ends is subjected to a torque T and a bending moment M (see figure). yo T M. M хо ZO The outer radius is 13.2 in. and the wall thickness is 1.0 in. The loads are T = 800 kip-in., M = 1,000 kip-in., and the internal pressure p = 700 psi. Determine the maximum tensile stress , maximum compressive stress, and maximum shear stress Tmax in the wall of the cylinder. (Enter the magnitudes in psi. Assume that the structure behaves linearly elastically and that the stresses caused by two or more loads may be superimposed to obtain the resultant stresses acting at a point. Consider both in-plane and out-of-plane shear stresses unless otherwise specified.) ot = psi 'C ✓ psi Tmax psi 0 Submit Answer
