Question 3 Derive The Transfer Function Of The Mass Rack Pinion System Below D1 0 1 M And D2 1m Where A Mass M 1 (48.65 KiB) Viewed 52 times

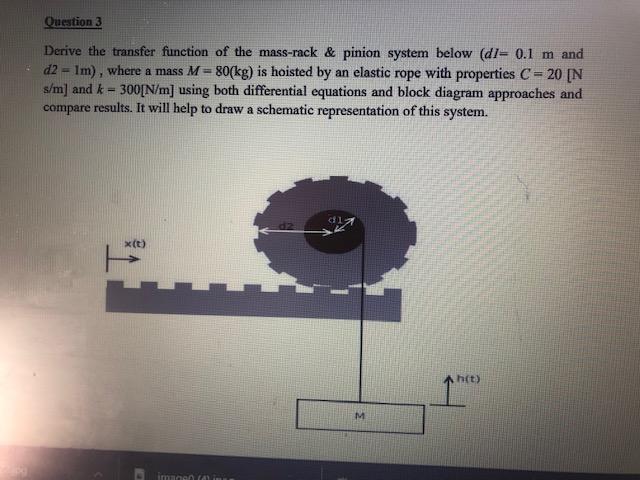

Question 3 Derive the transfer function of the mass-rack & pinion system below (d1- 0.1 m and d2 = 1m), where a mass M = 80(kg) is hoisted by an elastic rope with properties C= 20 [N s/m] and k = 300[N/m] using both differential equations and block diagram approaches and compare results. It will help to draw a schematic representation of this system. d17 x(t) Ah(t) imanen(a) i M
Drive the wafer function of the massack & pinion system below (4/- 0.1 m and 22-1), where M-100kg) is hoisted by an elastic rope with properties C-20 (N ving &-300 uning both differential equations and block diagram appeaches and ps. It will help to draw a schematic representation of this system
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
