(a) A linkage mechanism is shown in Figure 1. Link 1 is the fixed link. Link 2, Link 3 and link 4 slide on Link 1 respec

Post by answerhappygod »

A A Linkage Mechanism Is Shown In Figure 1 Link 1 Is The Fixed Link Link 2 Link 3 And Link 4 Slide On Link 1 Respec 1
A A Linkage Mechanism Is Shown In Figure 1 Link 1 Is The Fixed Link Link 2 Link 3 And Link 4 Slide On Link 1 Respec 1 (57.64 KiB) Viewed 51 times

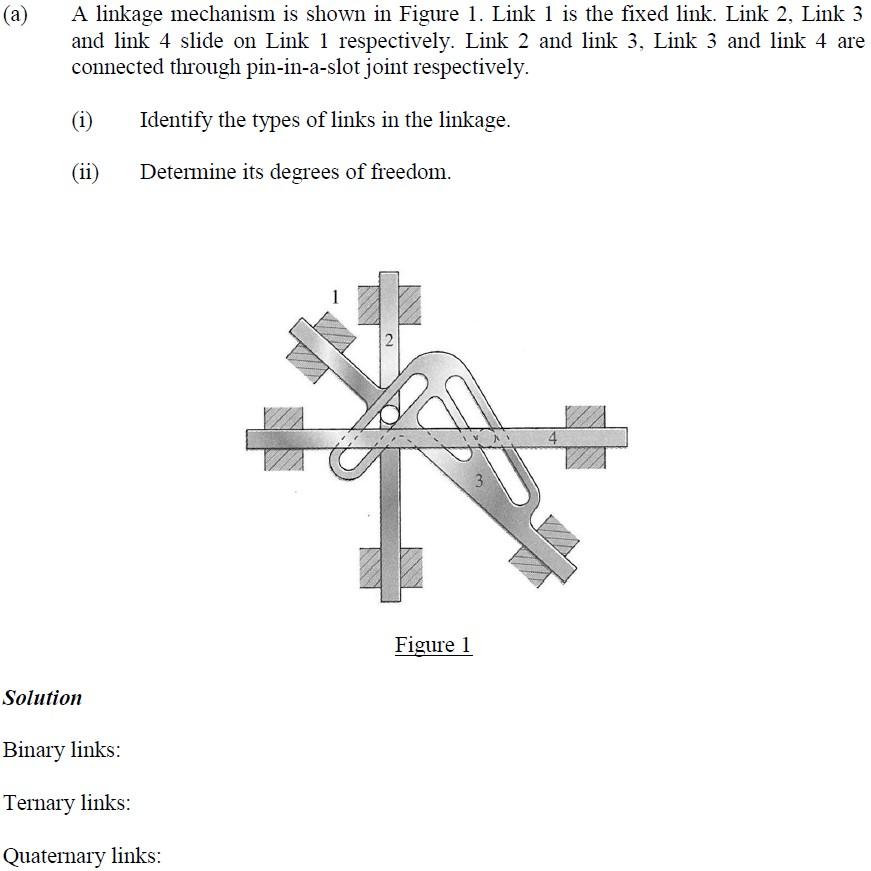

(a) A linkage mechanism is shown in Figure 1. Link 1 is the fixed link. Link 2, Link 3 and link 4 slide on Link 1 respectively. Link 2 and link 3, Link 3 and link 4 are connected through pin-in-a-slot joint respectively. (i) Identify the types of links in the linkage. (11) Determine its degrees of freedom. Solution Binary links: Ternary links: Quaternary links: 2 Figure 1
