4.1 Determine joint displacements and axial forces in the three-bar pin-jointed structure shown in Figure 4.51. All memb

Post by answerhappygod »

4 1 Determine Joint Displacements And Axial Forces In The Three Bar Pin Jointed Structure Shown In Figure 4 51 All Memb 1
4 1 Determine Joint Displacements And Axial Forces In The Three Bar Pin Jointed Structure Shown In Figure 4 51 All Memb 1 (25.81 KiB) Viewed 33 times

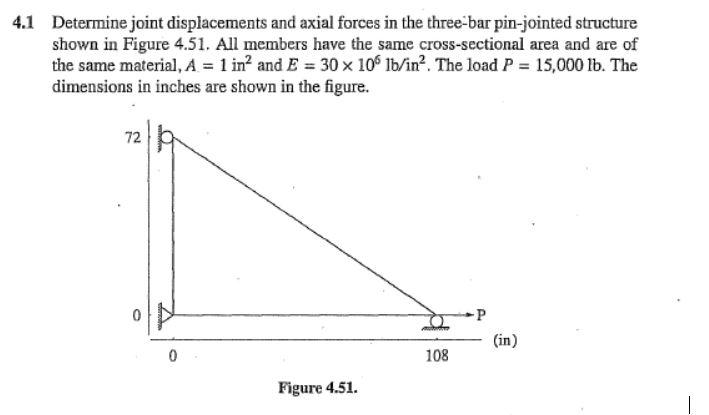

4.1 Determine joint displacements and axial forces in the three-bar pin-jointed structure shown in Figure 4.51. All members have the same cross-sectional area and are of the same material, A = 1 in² and E = 30 x 106 lb/in². The load P = 15,000 lb. The dimensions in inches are shown in the figure. 72 P mit Figure 4.51. 0 108 (in)
