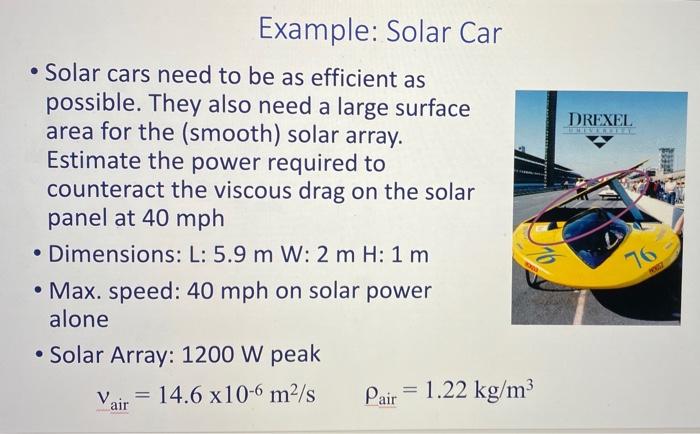

Example: Solar Car • Solar cars need to be as efficient as possible. They also need a large surface area for the (smooth) solar array. Estimate the power required to counteract the viscous drag on the solar panel at 40 mph • Dimensions: L: 5.9 m W: 2 m H: 1 m • Max. speed: 40 mph on solar power alone • Solar Array: 1200 W peak Vair = 14.6 x10-6 m²/s Pair = 1.22 kg/m³ DREXEL 76 POLIT

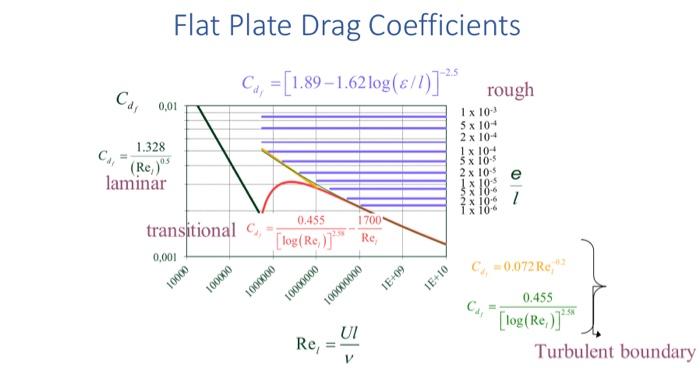

Caf 1.328 (Re)s laminar Car Flat Plate Drag Coefficients Ca, -[1.89-1.62log (8/1)]2 rough 0,01 1 x 103 5 x 104 2 x 104 1 x 104 5x 10-5 2 x 10-5 1x 10-5 x 10-6 2x 106 Ix 106 0.455 1700* C [log (Re)] Re, transitional 0,001 10000 100000 1000000 10000000 Re, : = 100000000 UI V IE+09 IE+10 e / C=0.072 Re," 0.455 Ca [log (Re,)] Turbulent boundary
