The manufacturer's data for the performance of a pump is given in the figure below. The Head (approx.) corresponding to
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The manufacturer's data for the performance of a pump is given in the figure below. The Head (approx.) corresponding to

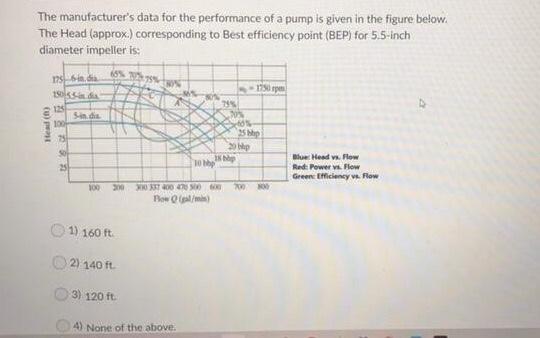

The manufacturer's data for the performance of a pump is given in the figure below. The Head (approx.) corresponding to Best efficiency point (BEP) for 5.5-inch diameter impeller is: 65% 793-75% ws 175 6-india 1750 rpm 150 55-in dia 75% 125 5-in.dis 100 75 Blue: Head vs. Flow Red: Power vs. Flow Green: Efficiency vs. Flow Head (0) 50 25 70% 1) 160 ft. 2) 140 ft. 3) 120 ft. 4) None of the above. 10% 25 hp 20 bkp 18 bp 10 bbp 100 200 300 337 400 475 500 600 700 Bow Q(gal/min) 800
