AQ2. For the truss structure below, use the method of sections to determine the forces inside members BD, BE, and CE. 1)
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
AQ2. For the truss structure below, use the method of sections to determine the forces inside members BD, BE, and CE. 1)

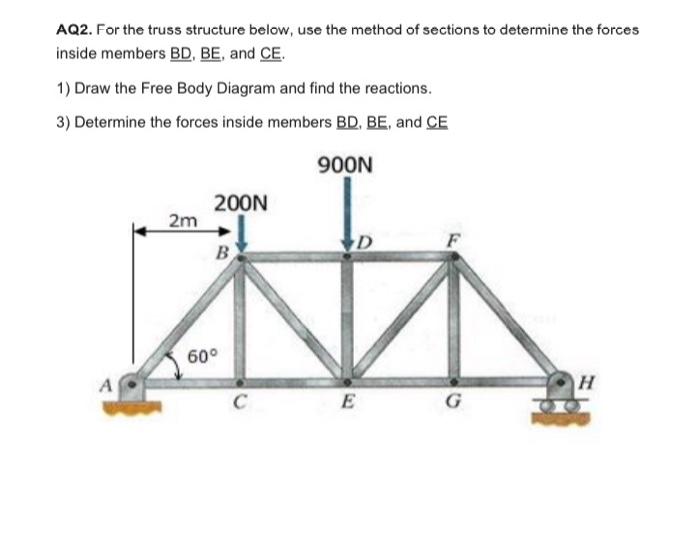

AQ2. For the truss structure below, use the method of sections to determine the forces inside members BD, BE, and CE. 1) Draw the Free Body Diagram and find the reactions. 3) Determine the forces inside members BD, BE, and CE 900N 200N 2m D F B G A 60° C E H
