2. (40 points) For an optimum rocket find the pressure (in MPa) and area at a location (x) inside its converging/divergi

[answerhappygod]

2 40 Points For An Optimum Rocket Find The Pressure In Mpa And Area At A Location X Inside Its Converging Divergi 1 (13.18 KiB) Viewed 31 times

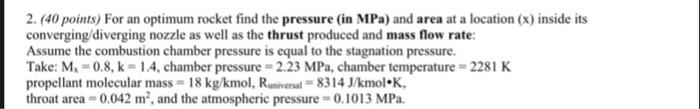

2. (40 points) For an optimum rocket find the pressure (in MPa) and area at a location (x) inside its converging/diverging nozzle as well as the thrust produced and mass flow rate: Assume the combustion chamber pressure is equal to the stagnation pressure. Take: M₁=0.8, k = 1.4, chamber pressure = 2.23 MPa, chamber temperature = 2281 K propellant molecular mass= 18 kg/kmol, Runiversal 8314 J/kmol K, throat area= 0.042 m², and the atmospheric pressure - 0.1013 MPa.
