kn=11.1 ma/V^2
- 1 (35.06 KiB) Viewed 29 times
- 2 (35.06 KiB) Viewed 29 times

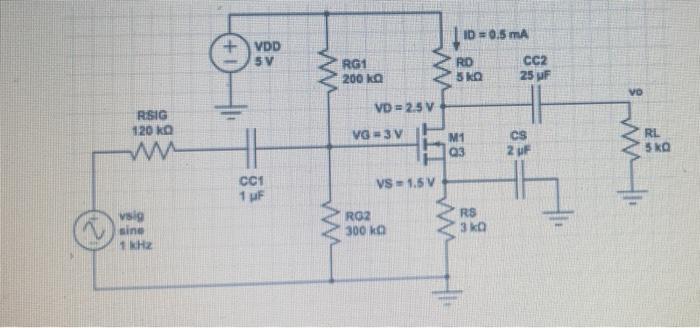

RSIG 120 KQ ww vsig sine 1 kHz + VDD SV HH CC1 1 μF ww www RG1 200 ka VD=2.5 V VG=3 V www VS=1.5 V RG2 300 k ID=0.5 mA M RD 5 KQ 83 RS 3kQ CC2 25 UF 2 µF VO RL 5 KQ
VTN=0.7V ʎn=0 kn=11.1 ma/V^2 considering the low frequency equivalent, what is the largest pole frequency(Hz).
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
VTN=0.7V ʎn=0 kn=11.1 ma/V^2 considering the low frequency equivalent, what is the largest pole frequency(Hz).
VTN=0.7V
ʎn=0
kn=11.1 ma/V^2
considering the low frequency equivalent, what is the largest pole frequency(Hz).
RSIG 120 KQ ww vsig sine 1 kHz + VDD SV HH CC1 1 μF ww www RG1 200 ka VD=2.5 V VG=3 V www VS=1.5 V RG2 300 k ID=0.5 mA M RD 5 KQ 83 RS 3kQ CC2 25 UF 2 µF VO RL 5 KQ
ʎn=0
kn=11.1 ma/V^2
considering the low frequency equivalent, what is the largest pole frequency(Hz).
RSIG 120 KQ ww vsig sine 1 kHz + VDD SV HH CC1 1 μF ww www RG1 200 ka VD=2.5 V VG=3 V www VS=1.5 V RG2 300 k ID=0.5 mA M RD 5 KQ 83 RS 3kQ CC2 25 UF 2 µF VO RL 5 KQ
