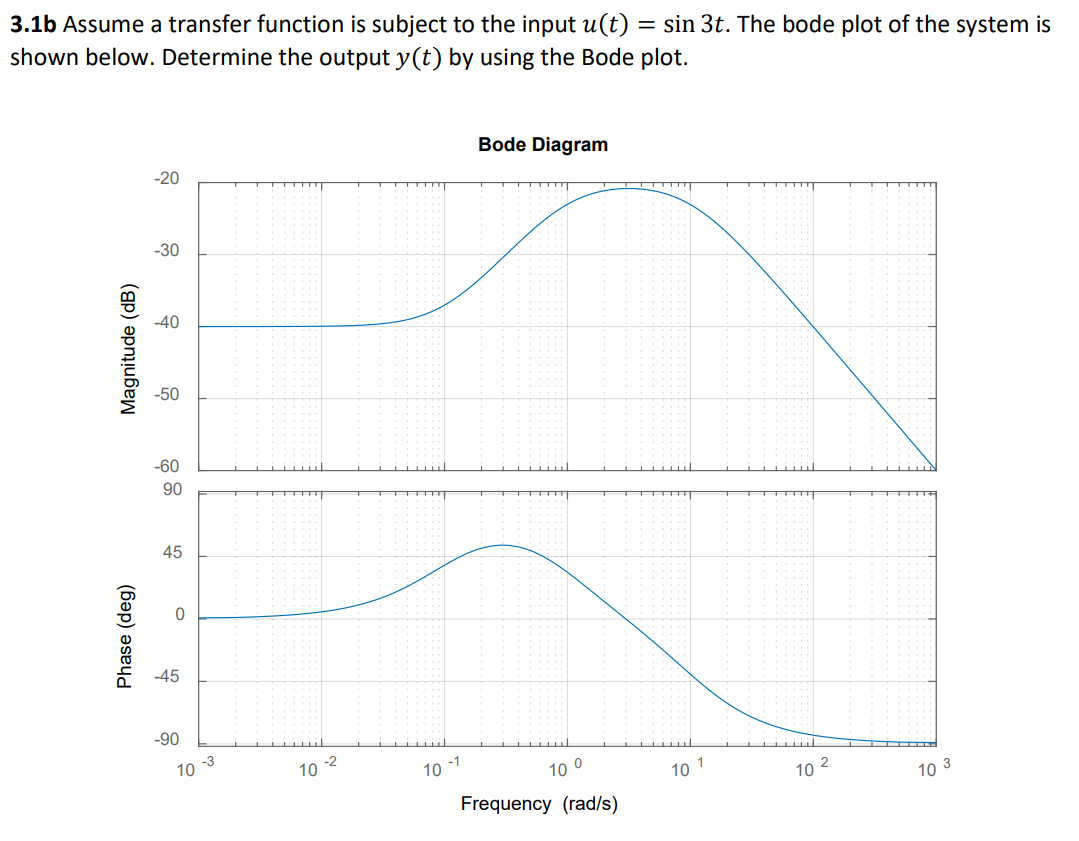

3.1b Assume a transfer function is subject to the input u(t) = = sin 3t. The bode plot of the system is shown below. Determine the output y(t) by using the Bode plot. Bode Diagram -20 ▬▬▬▬▬▬▬▬▬▬▬▬▬SSS -30 -40 -50 -60 90 45 10 Magnitude (dB) Phase (deg) -45 -90 10 -3 10 -2 10 -1 10 ⁰ Frequency (rad/s) 10 ² 10 3
