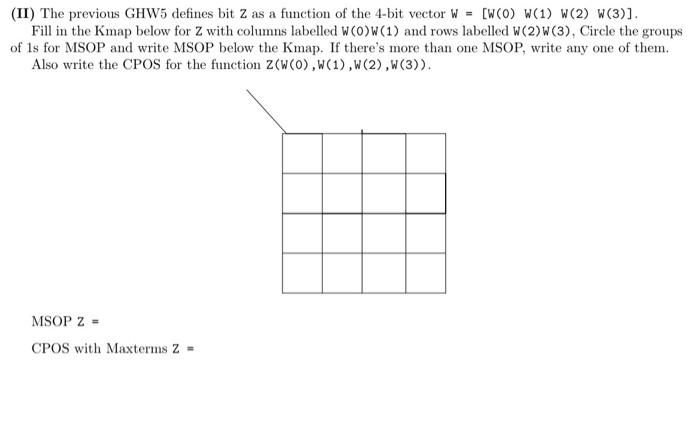

(II) The previous GHW5 defines bit Z as a function of the 4-bit vector W = [W(0) W(1) W(2) W(3)]. Fill in the Kmap below
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
(II) The previous GHW5 defines bit Z as a function of the 4-bit vector W = [W(0) W(1) W(2) W(3)]. Fill in the Kmap below
(II) The previous GHW5 defines bit Z as a function of the 4-bit vector W = [W(0) W(1) W(2) W(3)]. Fill in the Kmap below for Z with columns labelled W(0) W(1) and rows labelled W(2) W(3), Circle the groups of 1s for MSOP and write MSOP below the Kmap. If there's more than one MSOP, write any one of them. Also write the CPOS for the function Z(W(0),W(1), W (2), W (3)). MSOP Z = CPOS with Maxterms Z =
