10−15 A and β in the range 50 to 200. Find the expected range of
IE, α, IC, VC, IB, VBE, and VE. Comment on the results obtained
(i.e., comment on the changes in α, and all voltages and
currents).
- 1 (31.23 KiB) Viewed 18 times
The BJT in the circuit of Figure Q5 is specified to have IS = 10−15 A and β in the range 50 to 200. Find the expected ra
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The BJT in the circuit of Figure Q5 is specified to have IS = 10−15 A and β in the range 50 to 200. Find the expected ra
The BJT in the circuit of Figure Q5 is specified to have IS =
10−15 A and β in the range 50 to 200. Find the expected range of
IE, α, IC, VC, IB, VBE, and VE. Comment on the results obtained
(i.e., comment on the changes in α, and all voltages and
currents).

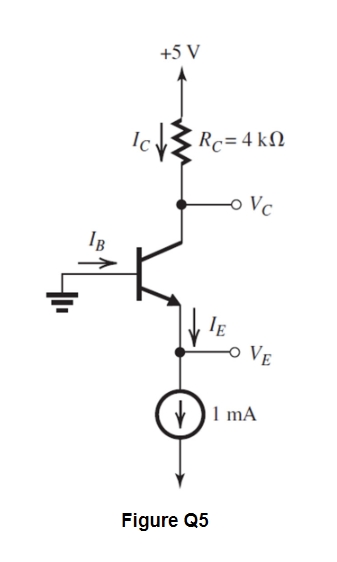

IB +5 V Ic√ Rc=4kQ -o Vc IE Figure Q5 VE 1 mA
