www.BANDICAM.COM Question 2.1 (MidTerm Exam 2010-2011) A vertical dock gate is 5 m wide and has water at a depth of 7.5
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
www.BANDICAM.COM Question 2.1 (MidTerm Exam 2010-2011) A vertical dock gate is 5 m wide and has water at a depth of 7.5

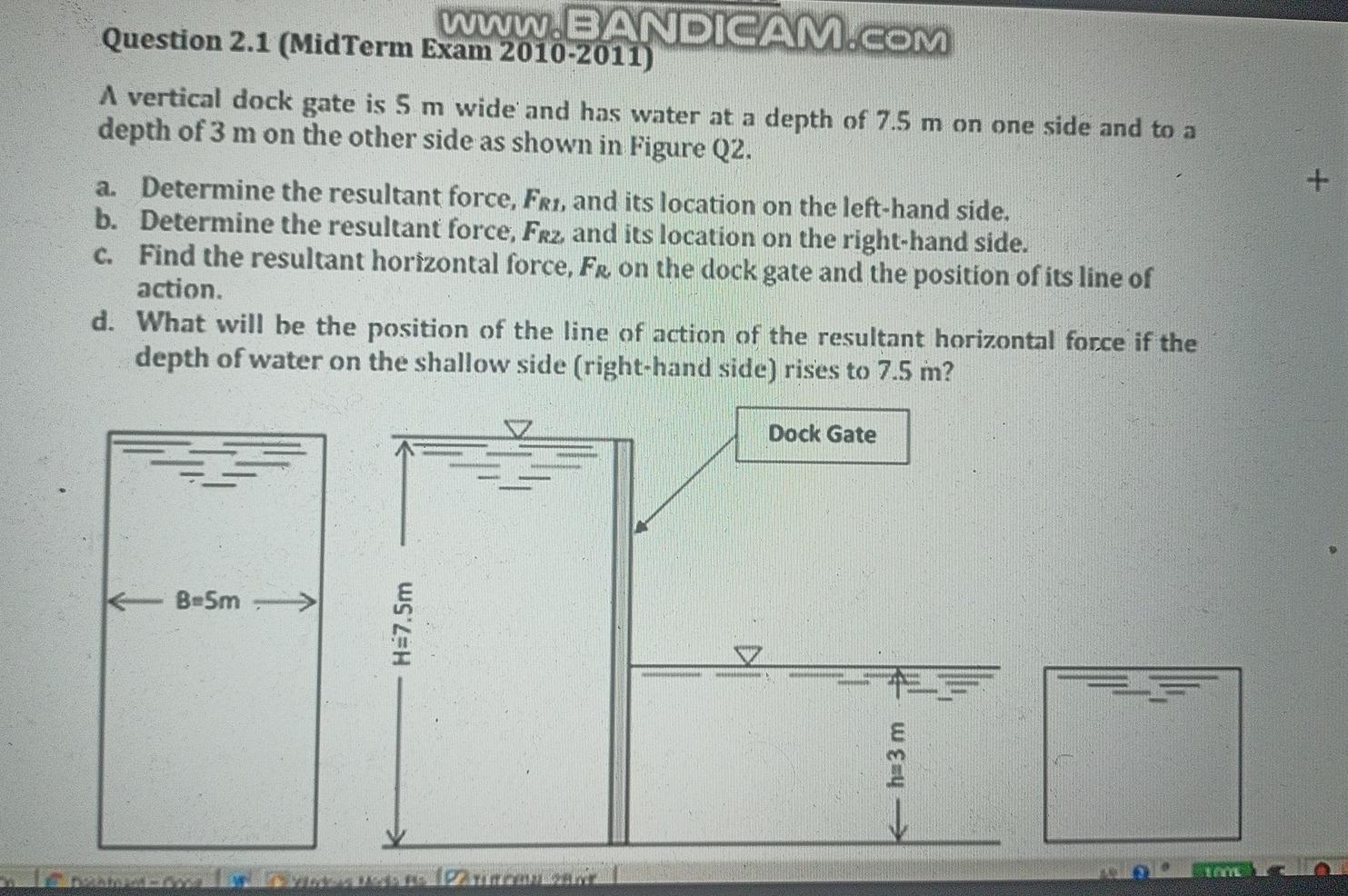

www.BANDICAM.COM Question 2.1 (MidTerm Exam 2010-2011) A vertical dock gate is 5 m wide and has water at a depth of 7.5 m on one side and to a depth of 3 m on the other side as shown in Figure Q2. a. Determine the resultant force, FRI, and its location on the left-hand side. b. Determine the resultant force, FRZ. and its location on the right-hand side. c. Find the resultant horizontal force, FR on the dock gate and the position of its line of action. d. What will be the position of the line of action of the resultant horizontal force if the depth of water on the shallow side (right-hand side) rises to 7.5 m? Dock Gate B=5m POO Im Te peator-ma H=7.5m VI HO RS 122 Roma 20 uu૬૫ > +
