Q1. (a) Figure 1 shows the internal circuitry for a charger prototype. You, the development engineer, are required to do

[answerhappygod]

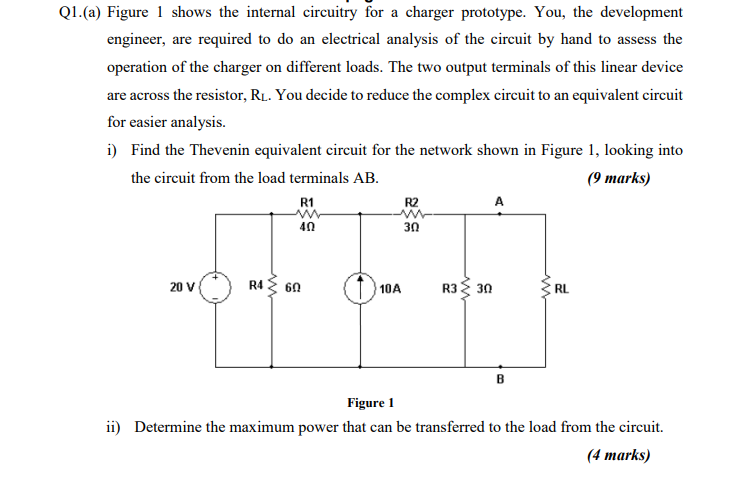

Q1 A Figure 1 Shows The Internal Circuitry For A Charger Prototype You The Development Engineer Are Required To Do 1 (69.18 KiB) Viewed 31 times

Please provide full working for number 1(a) parts
(i-ii), Thank You!!
Q1. (a) Figure 1 shows the internal circuitry for a charger prototype. You, the development engineer, are required to do an electrical analysis of the circuit by hand to assess the operation of the charger on different loads. The two output terminals of this linear device are across the resistor, RL. You decide to reduce the complex circuit to an equivalent circuit for easier analysis. i) Find the Thevenin equivalent circuit for the network shown in Figure 1, looking into the circuit from the load terminals AB. (9 marks) R1 R2 40 ვი +++ 20 V R460 10A R330 Figure 1 ii) Determine the maximum power that can be transferred to the load from the circuit. (4 marks) www RL
