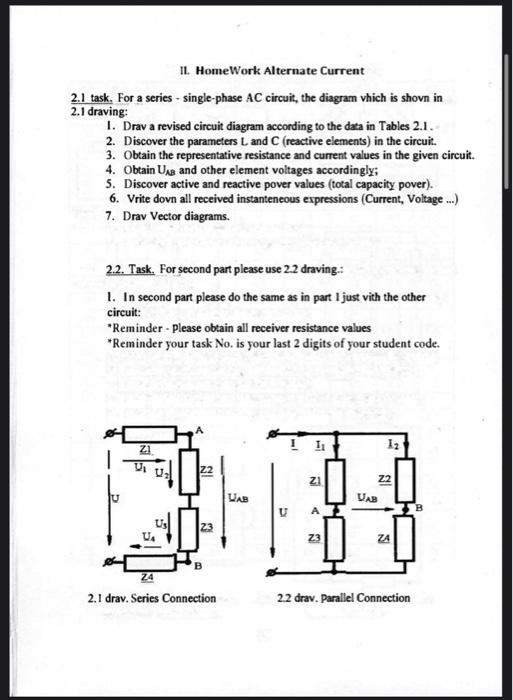

II. HomeWork Alternate Current 2.1 task. For a series-single-phase AC circuit, the diagram vhich is shown in 2.1 draving: 1. Drav a revised circuit diagram according to the data in Tables 2.1. 2. Discover the parameters L and C (reactive elements) in the circuit. 3. Obtain the representative resistance and current values in the given circuit. 4. Obtain UAB and other element voltages accordingly; 5. Discover active and reactive pover values (total capacity pover). 6. Vrite down all received instanteneous expressions (Current, Voltage...) 7. Drav Vector diagrams. 2.2. Task. For second part please use 2.2 draving.: 1. In second part please do the same as in part I just vith the other circuit: *Reminder - Please obtain all receiver resistance values *Reminder your task No. is your last 2 digits of your student code. I h 1₂ ZI I Z2 ZI A 23 Z3 ZA Z4 2.1 drav. Series Connection 2.2 drav. Parallel Connection U₂ UAB U VAB Z2

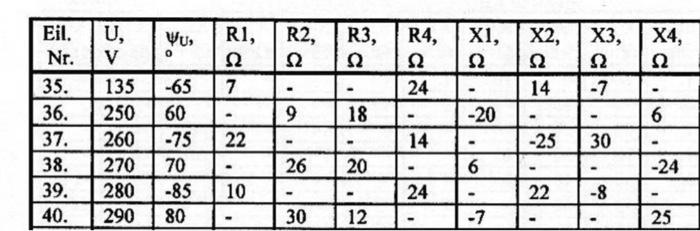

Eil. U, Nr. V Ψυ 0 35. 135 -65 36. 250 60 37. 260 -75 38. 270 70 39. 280 -85 40. 290 80 R1, R2, R3, Ω Ω Ω 7 . - . 9 18 22 - . 26 20 10 - - 30 12 R4, Χ1, Ω 24 14 - 24 α Ω - -20 - 6 -7 X2, Ω 14 - -25 22 X3, Ω -7 - 30 - -8 1 Χ4, Ω - 6 - -24 - 25
