Post
by answerhappygod »
- R S E S C S G S C S R 3 G S 1 G S H S B S H S E S R S B S B S H S C S C S G S E S C S 1 (117.37 KiB) Viewed 27 times
G(s) = 50 / s+50, H(s) = K
1.Solve the Time constant , Ts, Tr at openloop transfer
function.
2.Solve the Time constant, Ts, k at Closed-loop Transfer
Function. ( Tr = 0.022)

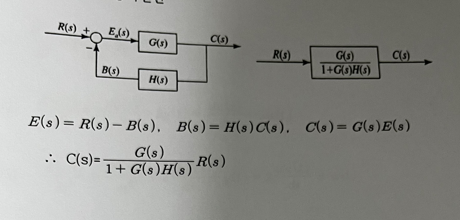

R(s) + E(s) C(s) G(s) C(s) R(3) G(s) 1+G(s)H(s) B(s) H(s) E(s) = R(s)- B(s). B(s) = H(s) C(s). C(s) = G(s)E(s) .. C(s)=- G(s) 1+ G(s)H(s) R(s)
