x Meme The resulting matrix below is for a voltage source/resistive network: 40volts +30K -20K 0. 11 Ovolts = -20K +70K

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

x Meme The resulting matrix below is for a voltage source/resistive network: 40volts +30K -20K 0. 11 Ovolts = -20K +70K

Post by answerhappygod »

X Meme The Resulting Matrix Below Is For A Voltage Source Resistive Network 40volts 30k 20k 0 11 Ovolts 20k 70k 1
X Meme The Resulting Matrix Below Is For A Voltage Source Resistive Network 40volts 30k 20k 0 11 Ovolts 20k 70k 1 (56.62 KiB) Viewed 34 times

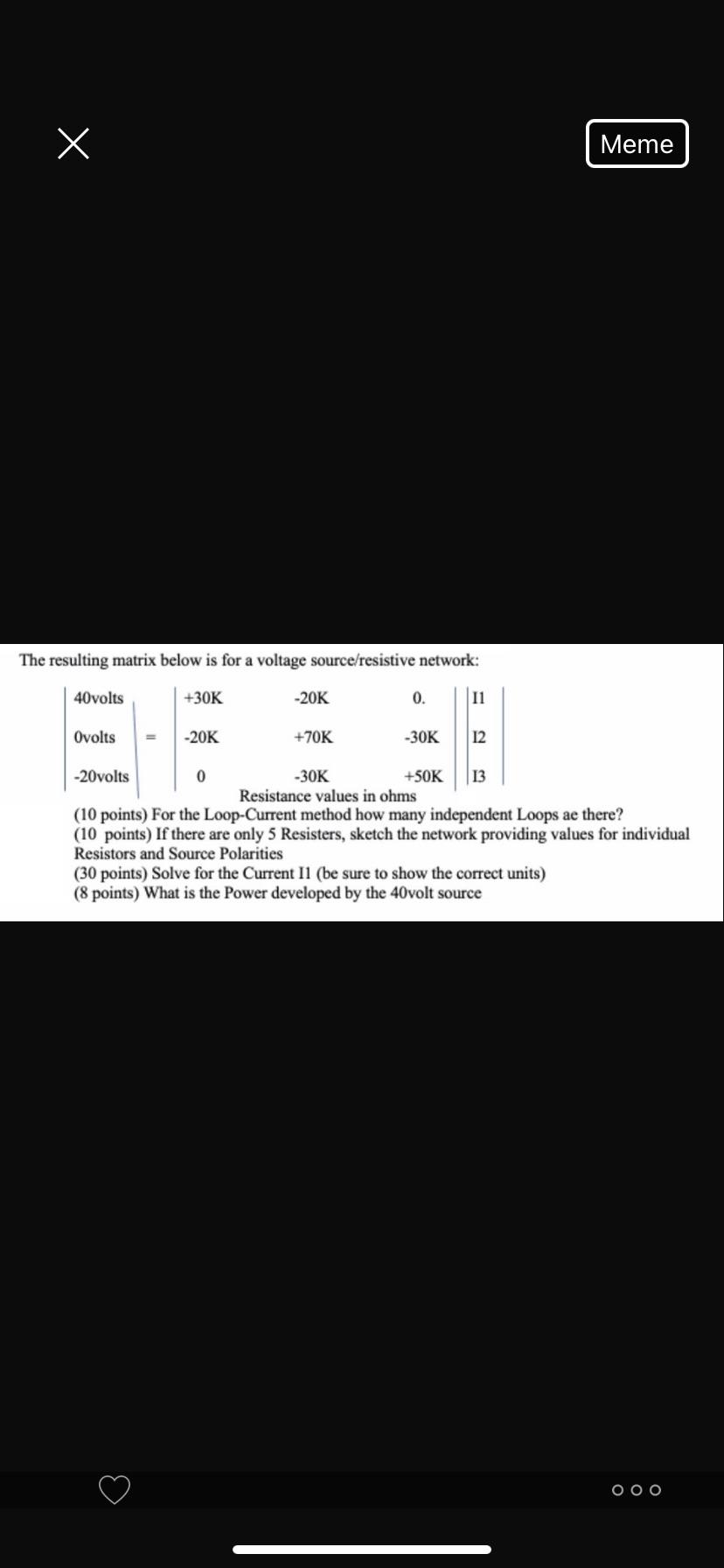

x Meme The resulting matrix below is for a voltage source/resistive network: 40volts +30K -20K 0. 11 Ovolts = -20K +70K -30K 12 -20volts 0 -30K +50K 13 Resistance values in ohms (10 points) For the Loop-Current method how many independent Loops ae there? (10 points) If there are only 5 Resisters, sketch the network providing values for individual Resistors and Source Polarities (30 points) Solve for the Current I1 (be sure to show the correct units) (8 points) What is the Power developed by the 40volt source 000
