The resulting matrix below is for a voltage source/resistive network: 40volts +30K -20K 0. 11 Ovolts -20K +70K -30K 12 -

Post by answerhappygod »

The Resulting Matrix Below Is For A Voltage Source Resistive Network 40volts 30k 20k 0 11 Ovolts 20k 70k 30k 12 1
The Resulting Matrix Below Is For A Voltage Source Resistive Network 40volts 30k 20k 0 11 Ovolts 20k 70k 30k 12 1 (37.37 KiB) Viewed 39 times

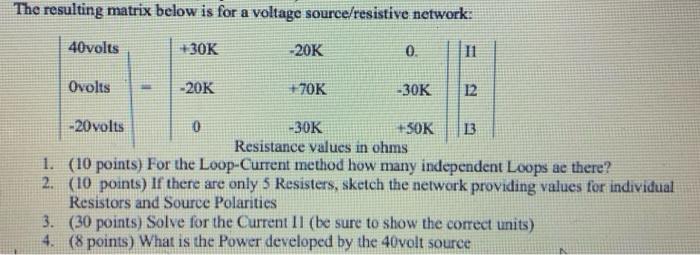

The resulting matrix below is for a voltage source/resistive network: 40volts +30K -20K 0. 11 Ovolts -20K +70K -30K 12 -20volts 0 -30K +50K 13 Resistance values in ohms 1. (10 points) For the Loop-Current method how many independent Loops ae there? 2. (10 points) If there are only 5 Resisters, sketch the network providing values for individual Resistors and Source Polarities 3. (30 points) Solve for the Current 11 (be sure to show the correct units) 4. (8 points) What is the Power developed by the 40volt source -
