The resulting matrix below is for a voltage source/resistive network: 40volts +30K -20K 0. II Ovolts -20K +70K -30K -20v

Post by answerhappygod »

The Resulting Matrix Below Is For A Voltage Source Resistive Network 40volts 30k 20k 0 Ii Ovolts 20k 70k 30k 20v 1
The Resulting Matrix Below Is For A Voltage Source Resistive Network 40volts 30k 20k 0 Ii Ovolts 20k 70k 30k 20v 1 (16.56 KiB) Viewed 30 times

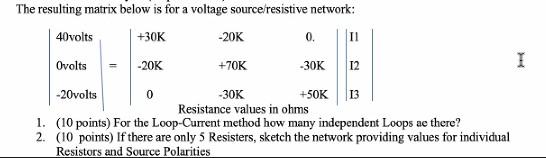

The resulting matrix below is for a voltage source/resistive network: 40volts +30K -20K 0. II Ovolts -20K +70K -30K -20volts -30K +50K 13 Resistance values in ohms 1. (10 points) For the Loop-Current method how many independent Loops ae there? 2. (10 points) If there are only 5 Resisters, sketch the network providing values for individual Resistors and Source Polarities H
